Modular Wire Screen Media

Wire level throughput and drainage.

Our line of modular wire media has a variety of options available ranging from welded wire to self-cleaning wire designs. METALDEX offers the convenience of our modular design with the throughput and drainage capabilities of wire cloth and other traditional wire products.

Gain the same throughput and drain rates as traditional wire cloth and wedge wire products.

Available in multiple design options for best application fit.

Modular form for easy maintenance and safer changeouts.

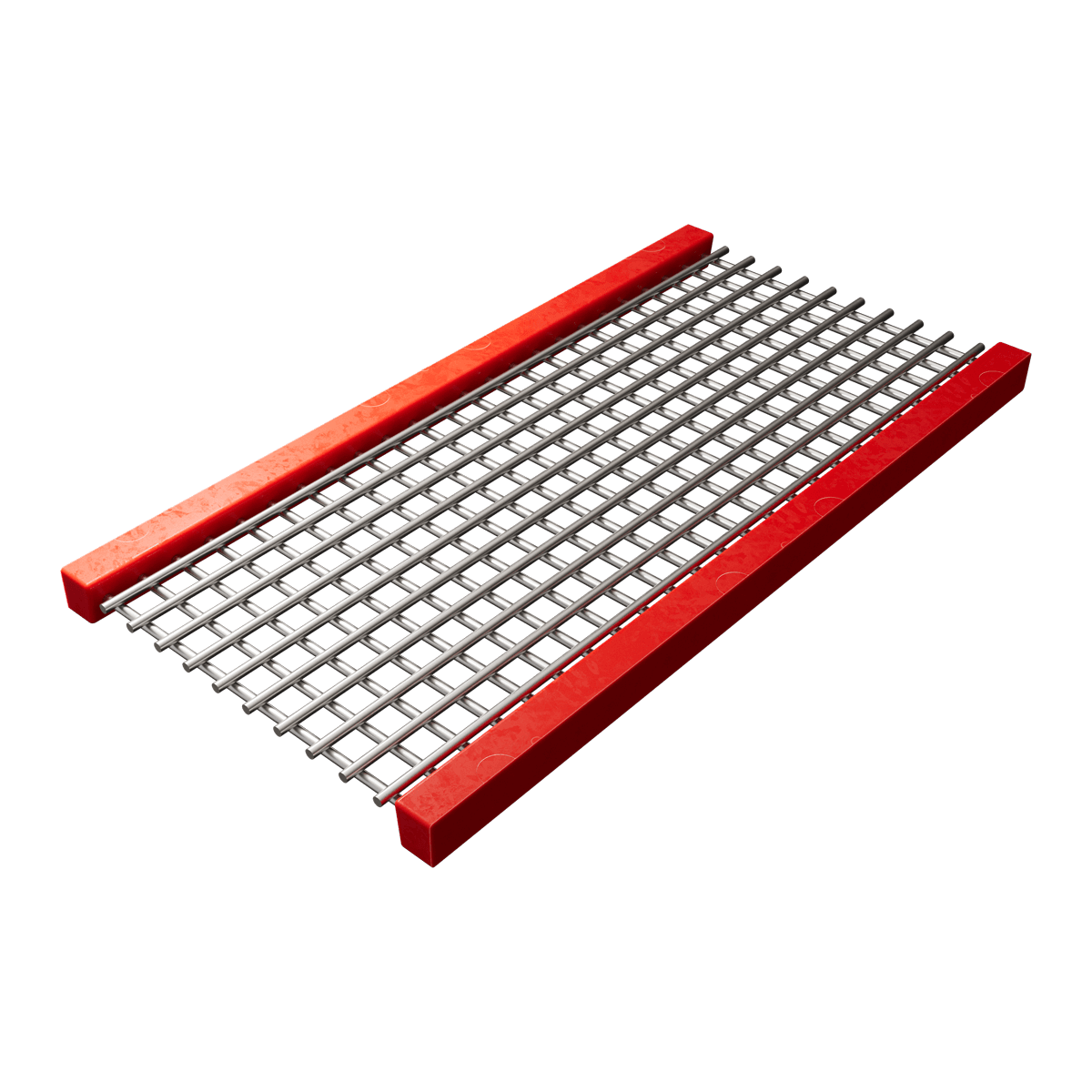

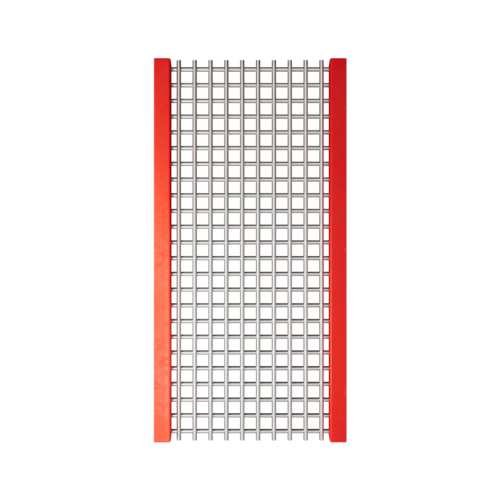

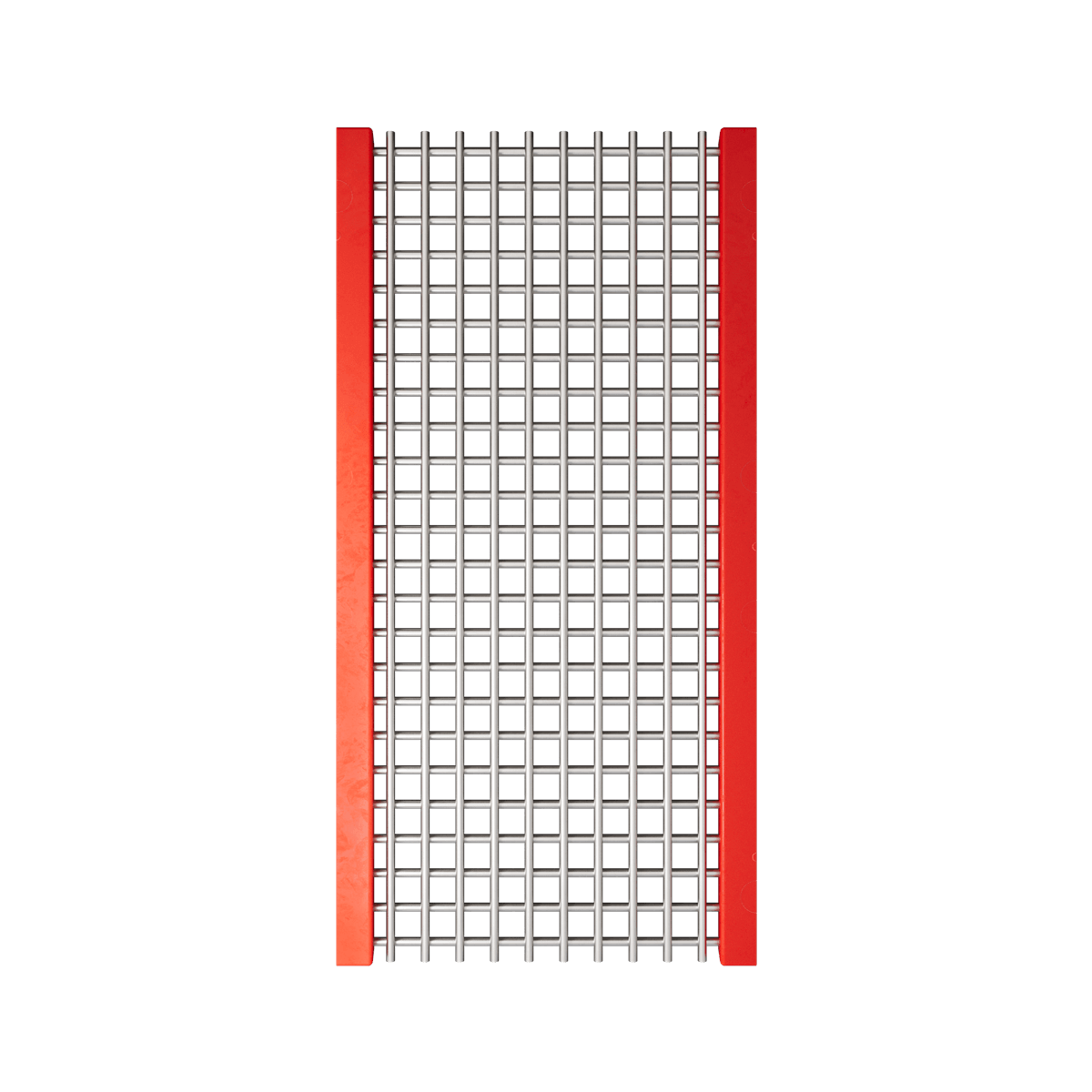

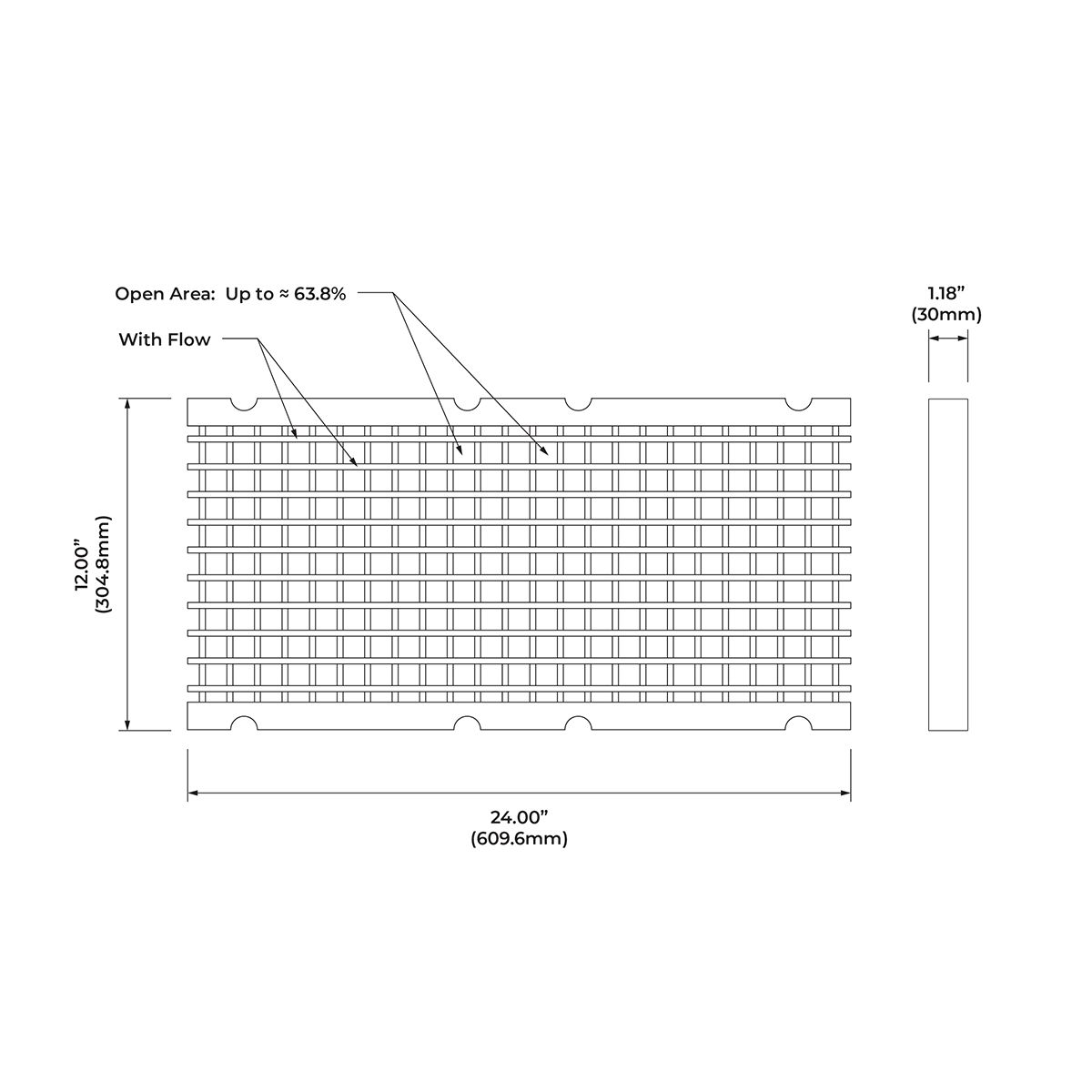

Our modular welded wire screen media is specially engineered to give wire cloth level throughput in easy-to-handle modular form.

Panel Size:
1' x 2'

Panel Thickness:
30mm, 65mm

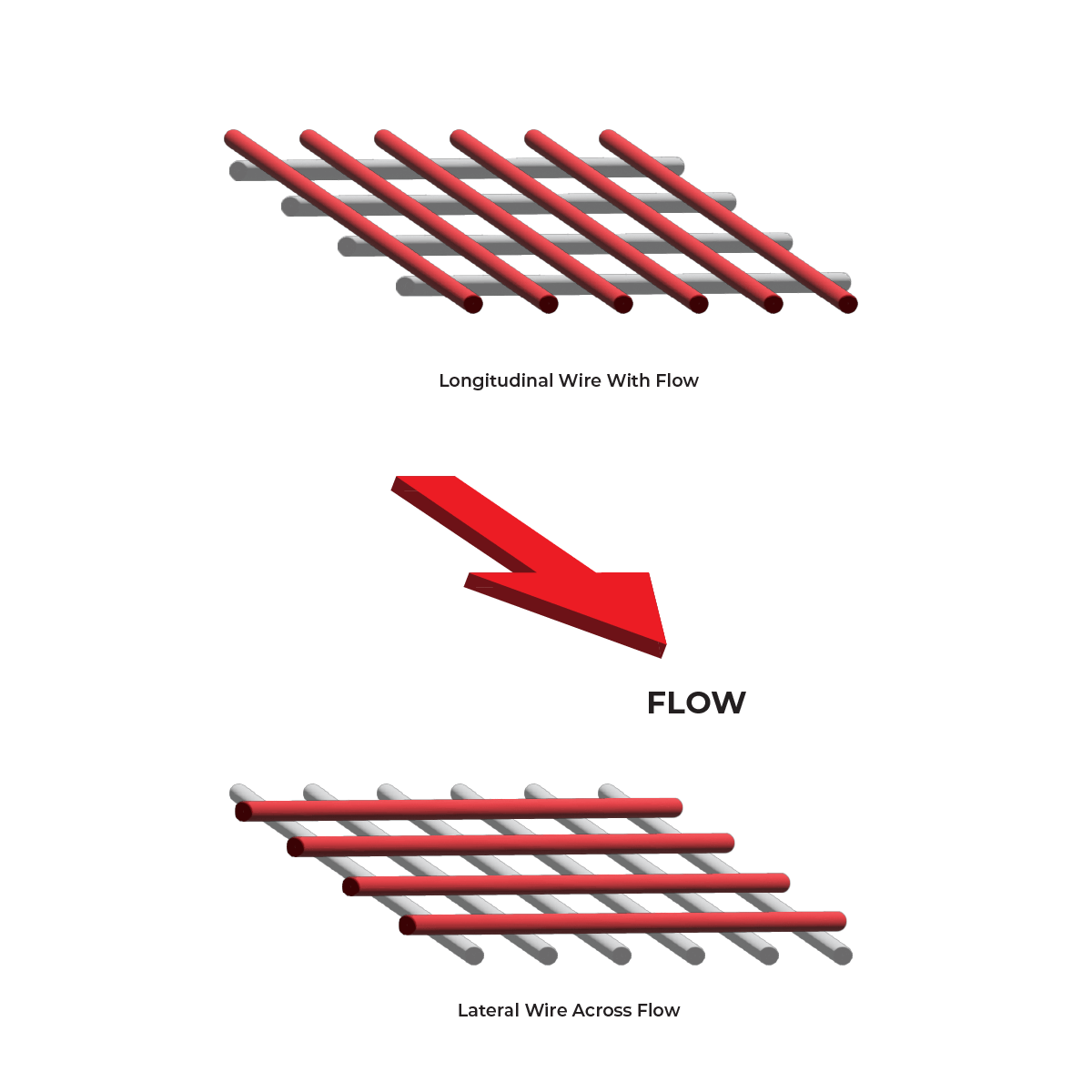

Configurations:
With Flow

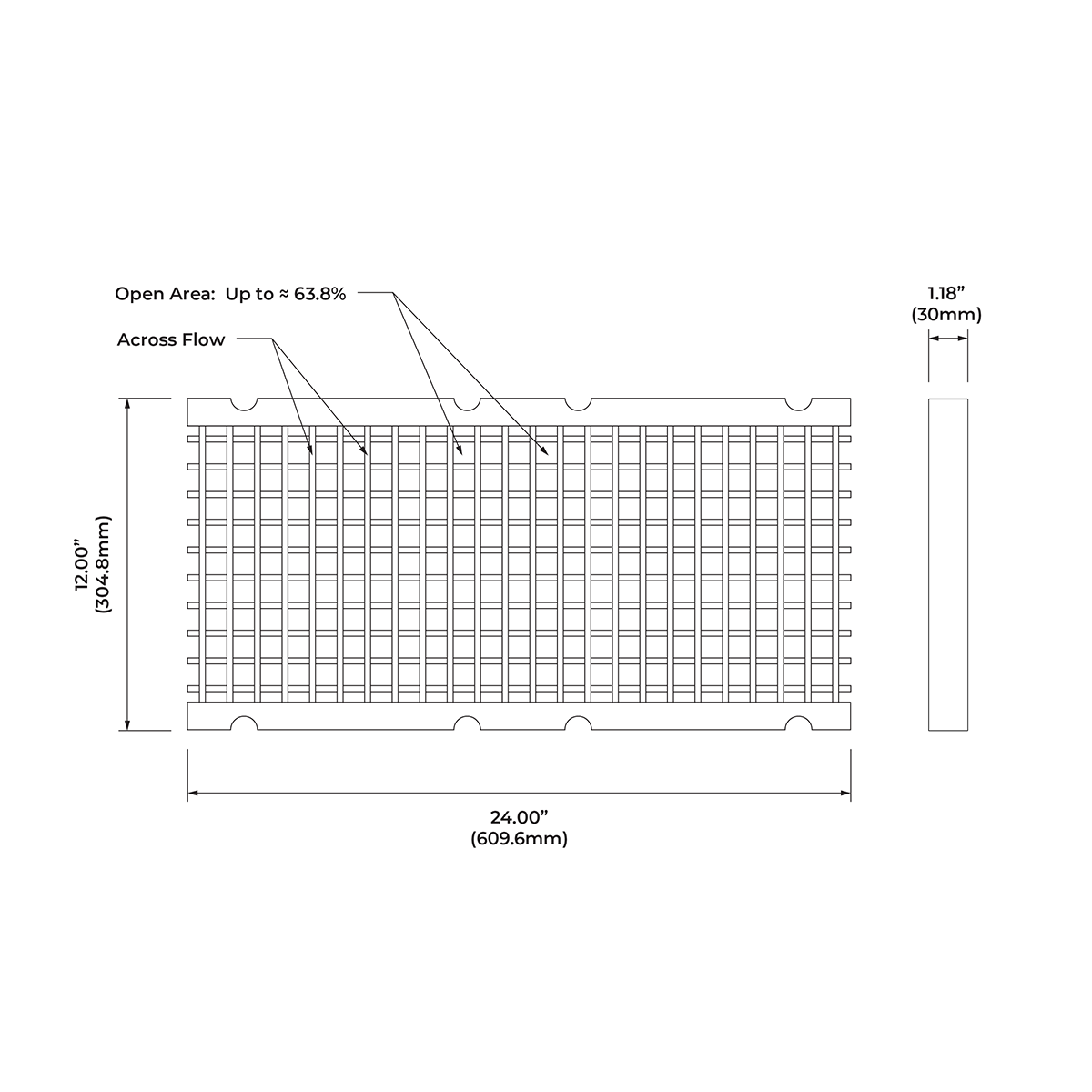

Across Flow

Opening	Wire Diameter	Open Area
1/2”	3/16”	44.4%
9/16”	1/4”	38.2%
3/4”	1/4”	45.9%
7/8”	1/4”	49.0%
1”	5/16”	50.0%
1-1/8”	5/16”	49.2%
1-1/4”	5/16”	48.8%
1-1/12”	3/8”	49.6%
1-3/4”	3/8”	55.9%
2”	3/8”	55.6%
2-1/4”	3/8”	59.8%
2-1/2”	3/8”	60.4%
3”	1/2”	63.8%

Pin

Download Spec Sheet

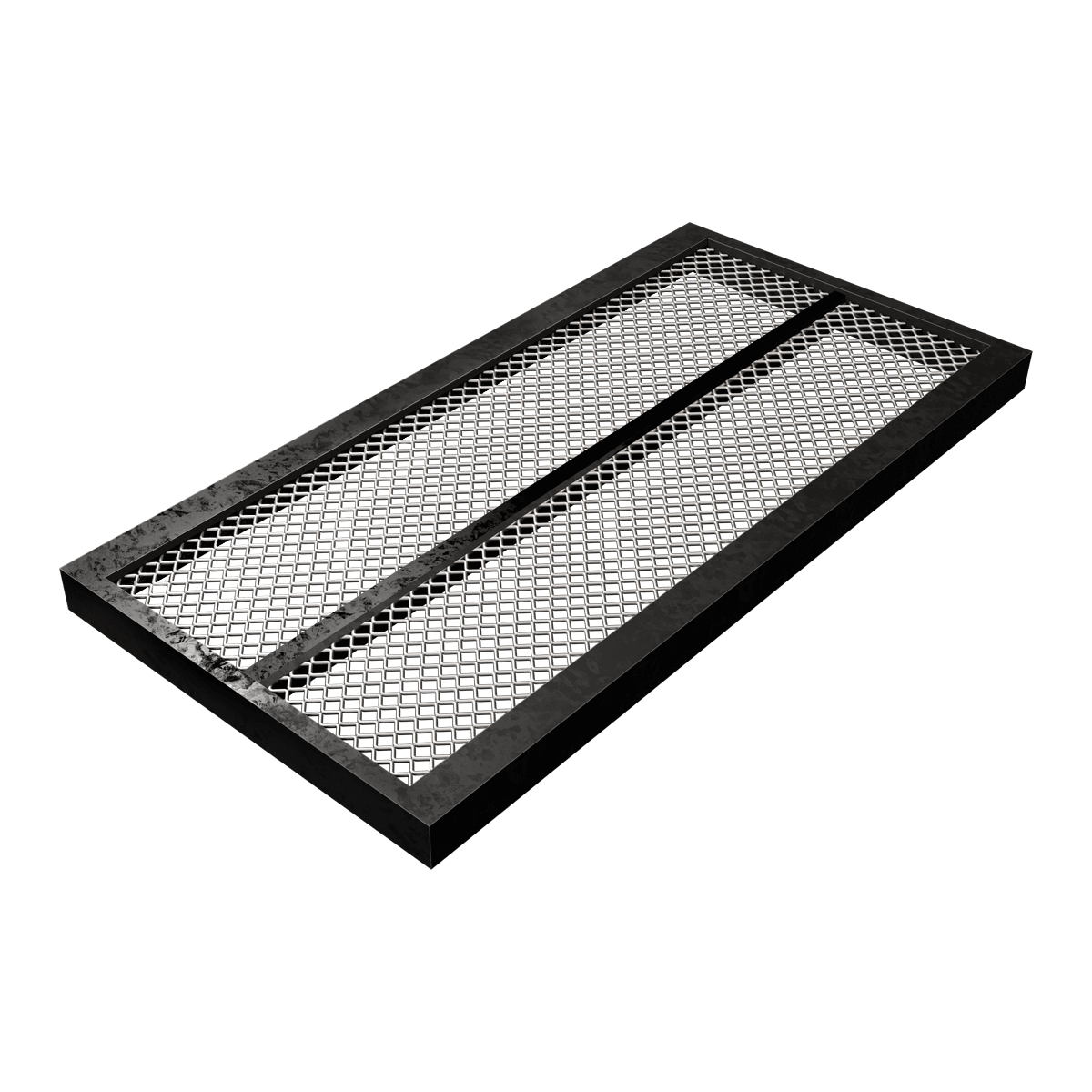

ULTRACLEAN

Overview
Opening Sizes/Wire Diameters
Fastening Options

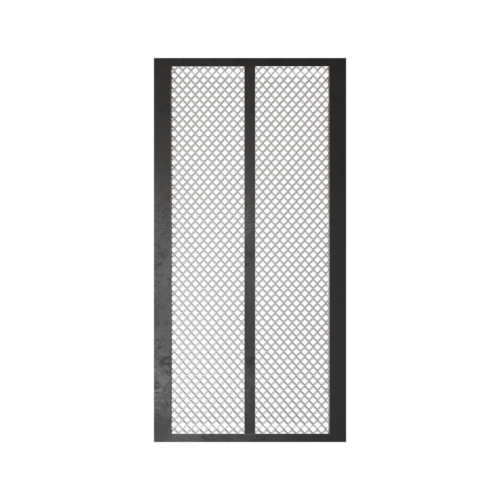

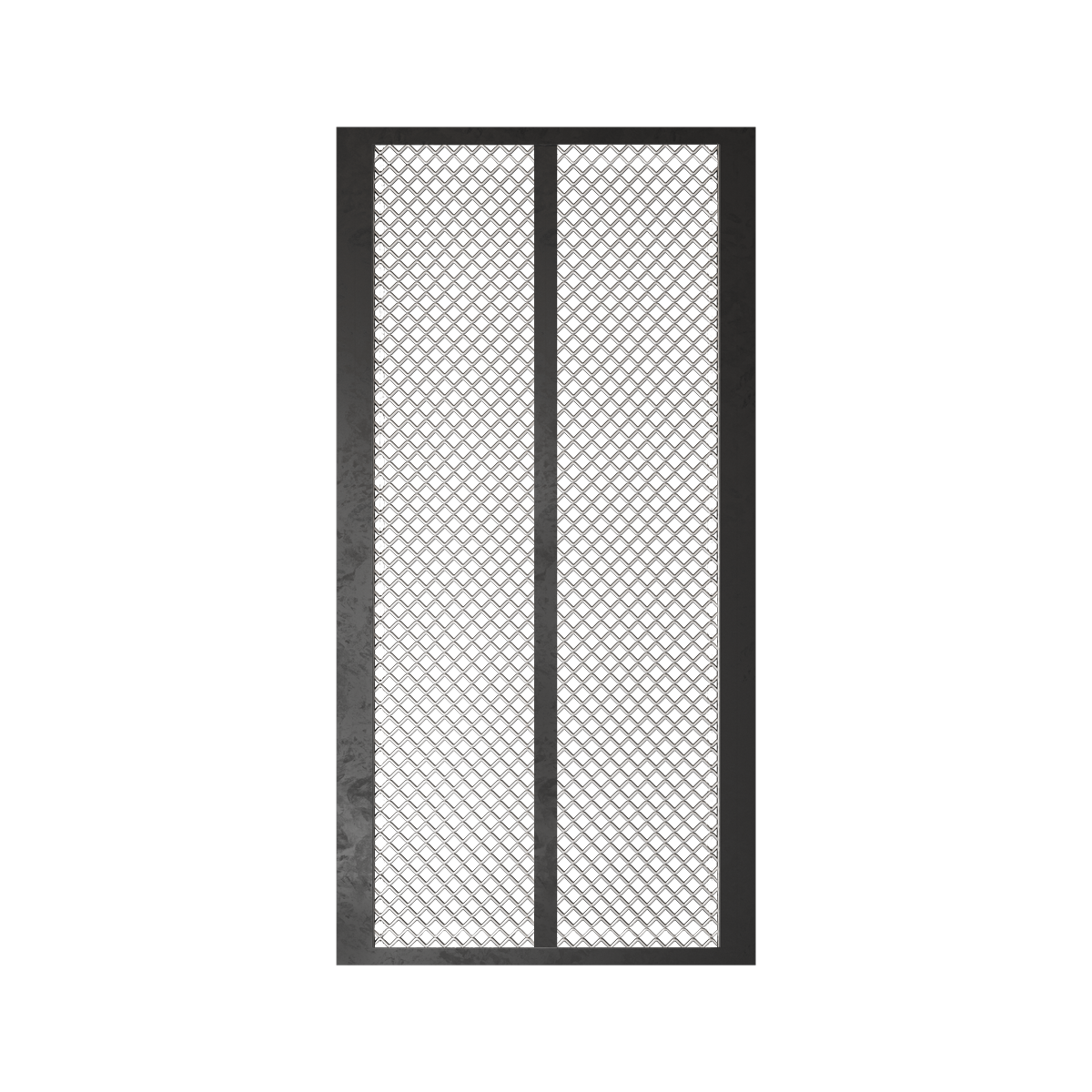

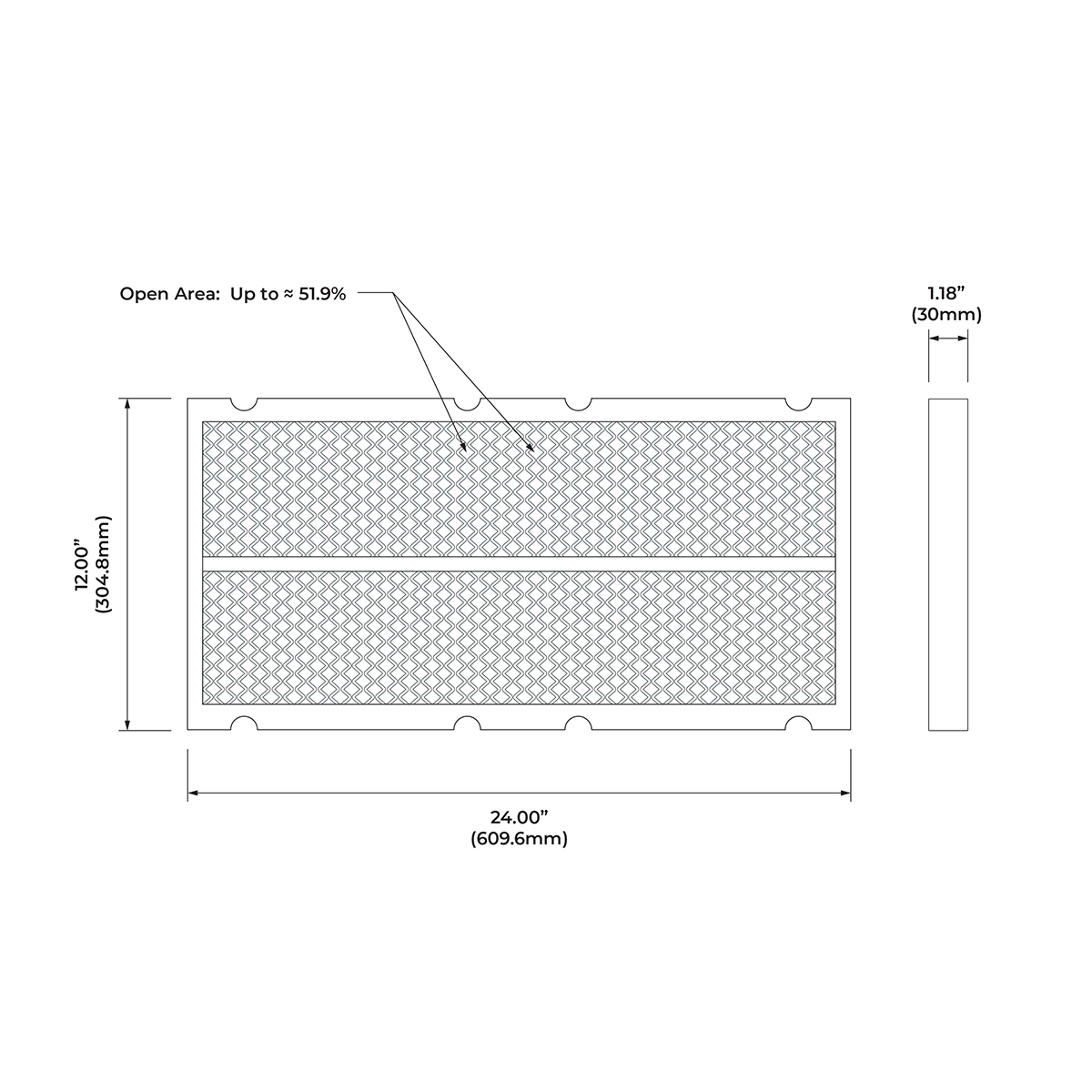

Our modular zigzag wire media introduces secondary motion for self-cleaning capabilities, preventing plugging and blinding in dry, fine-sizing applications. The small-gauge wire enhances throughput efficiency, making it ideal for discharge ends of overloaded decks or areas requiring improved product cleanliness.

Panel Size:
1' x 2'

Panel Thickness:
30mm, 40mm

Opening	Wire Diameter	Open Area
3/32”	0.060"	32.4%
1/8”	0.054"	38.9%
3/16”	0.072"	40.8%
1/4”	0.080"	44.2%
5/16”	0.092"	45.7%
3/8”	0.105"	47.6%
1/2”	0.148"	45.5%
9/16”	0.148"	49.4%
5/8”	0.139"	51.9%

Pin

Download Spec Sheet

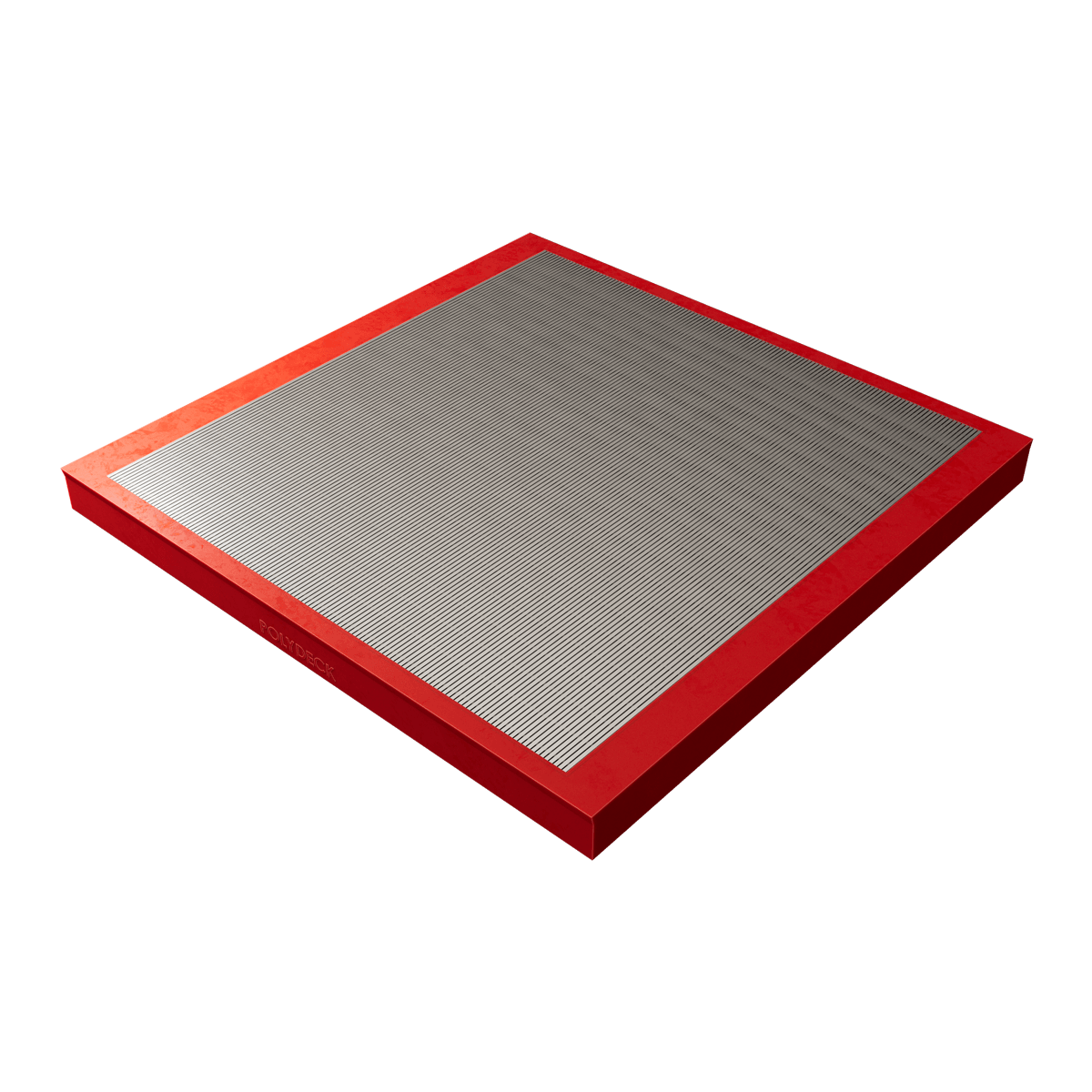

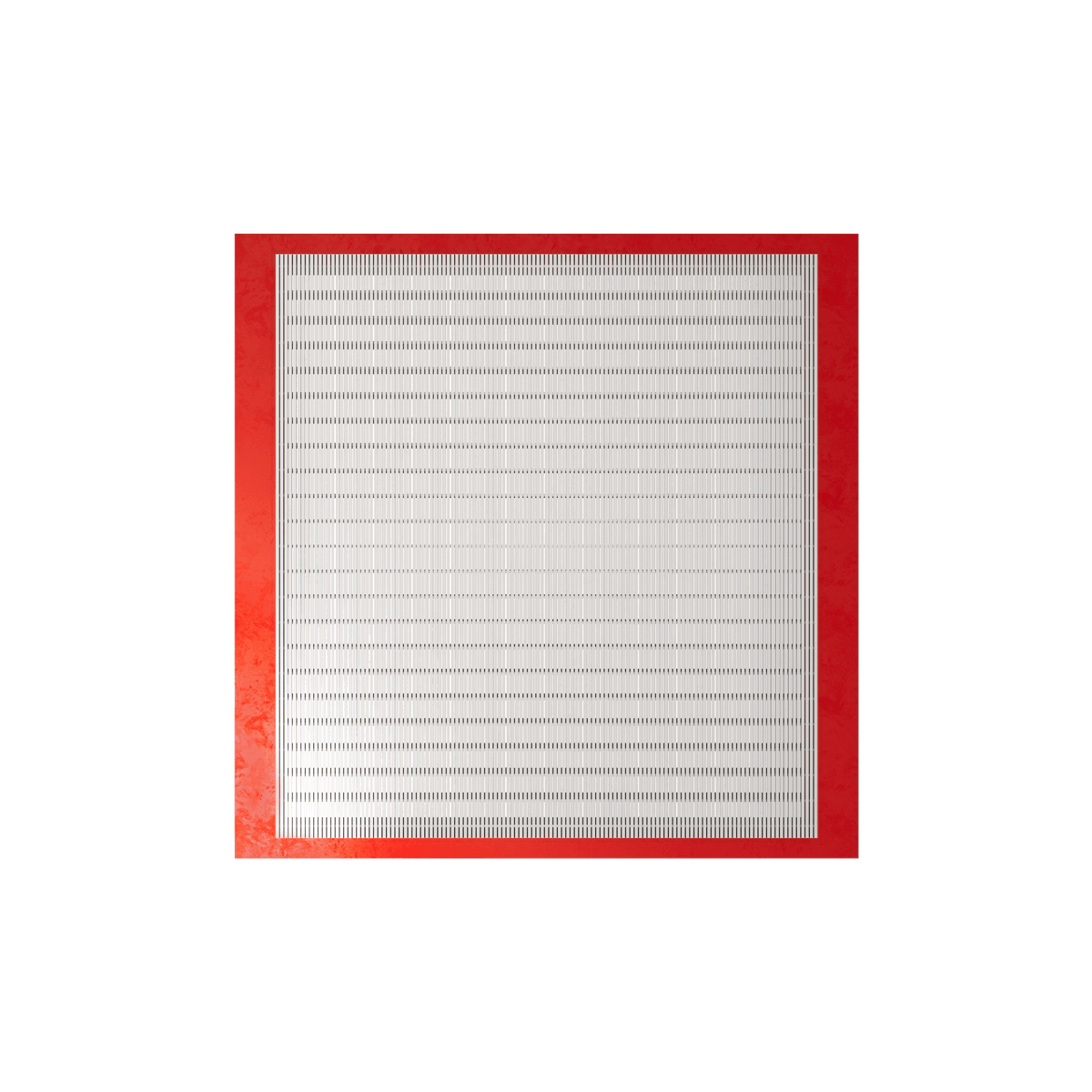

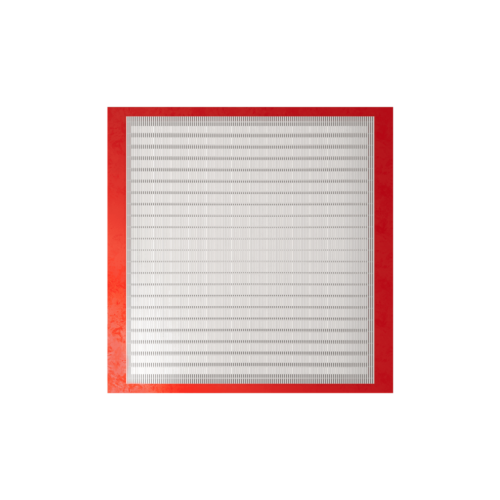

PRO

Overview
Opening Sizes
Fastening Options
Surface Features

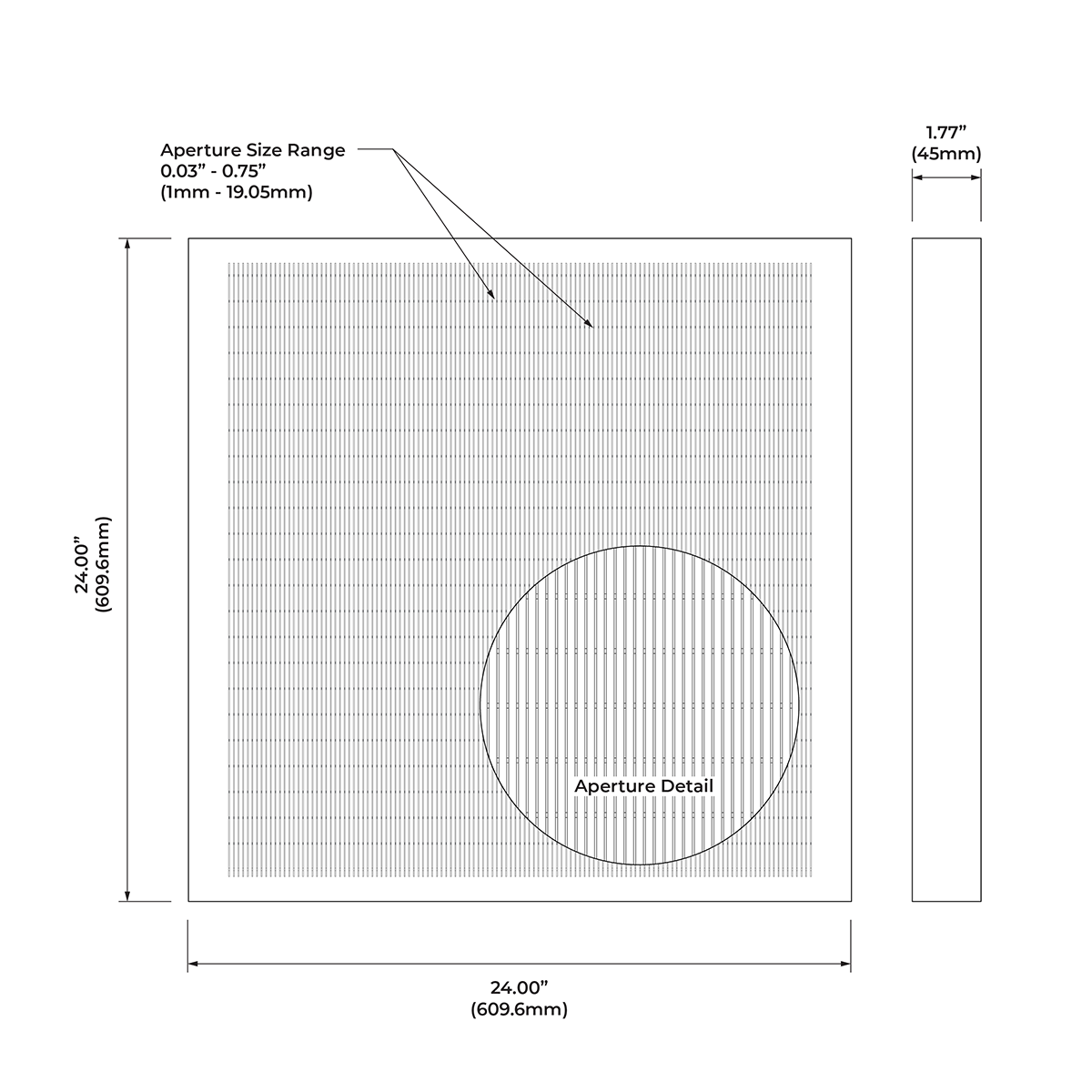

Our modular profile wire screen media is designed for efficient dewatering, drain & rinse, and desliming applications. Its construction allows for superior liquid-solid separation while maintaining high throughput. The modular design ensures easy installation and maintenance, reducing downtime and optimizing operational efficiency.

Panel Size:
2’ x 2'

Panel Thickness:
45mm

Opening	Description
0.5”	Hard Chrome
0.5”	Stainless Steel
0.65”	Hard Chrome
0.65”	Stainless Steel
0.75”	Hard Chrome
0.75”	Stainless Steel
1 mm	Hard Chrome
1 mm	Stainless Steel
2 mm	Stainless Steel
