LARGE AND SMALL FORMAT TROMMELS

Request a Quote

Designed for your needs.

Polydeck trommel systems are fully engineered screening solutions that integrate our advanced modular media, precision support structures, and customizable configurations to deliver high-efficiency performance in mill discharge and other demanding mining applications.

Whether you need a compact, easy-to-maintain system or a large-format solution with maximum open area, our PROTOP™ and PIPETOP® trommel systems are built to meet the demands of your operation.

Can be custom-designed with various stringers and modular media for best application fit.

Available in a flippable design for extended wear life.

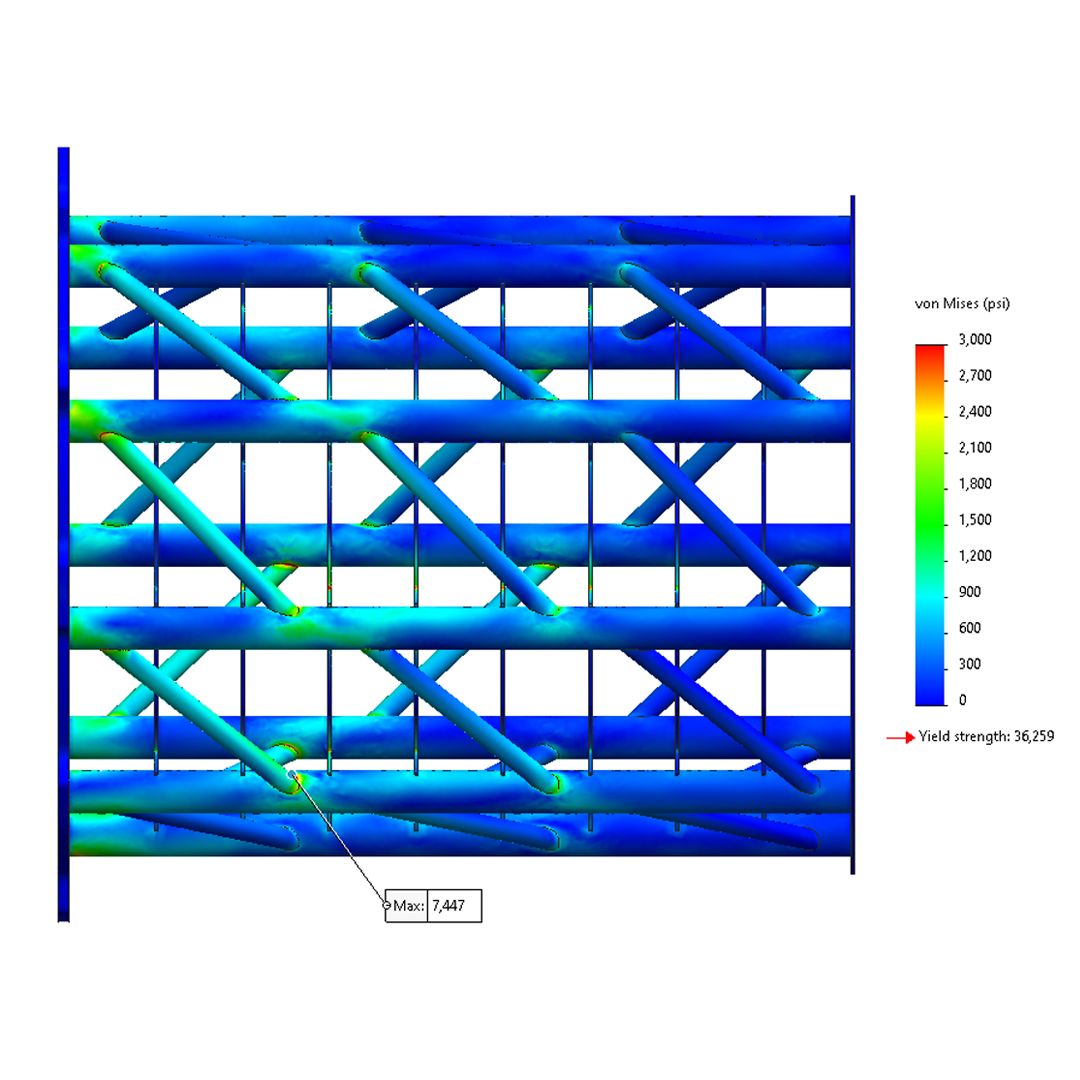

Verified using Finite Element Analysis (FEA) to ensure structural integrity under real-world operating conditions.

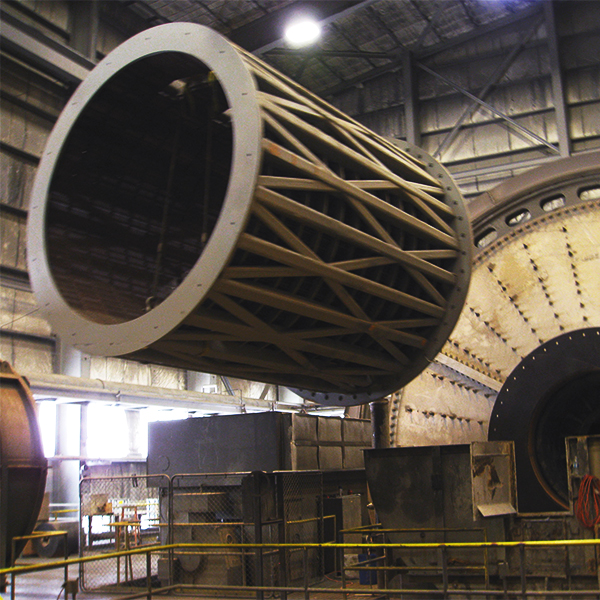

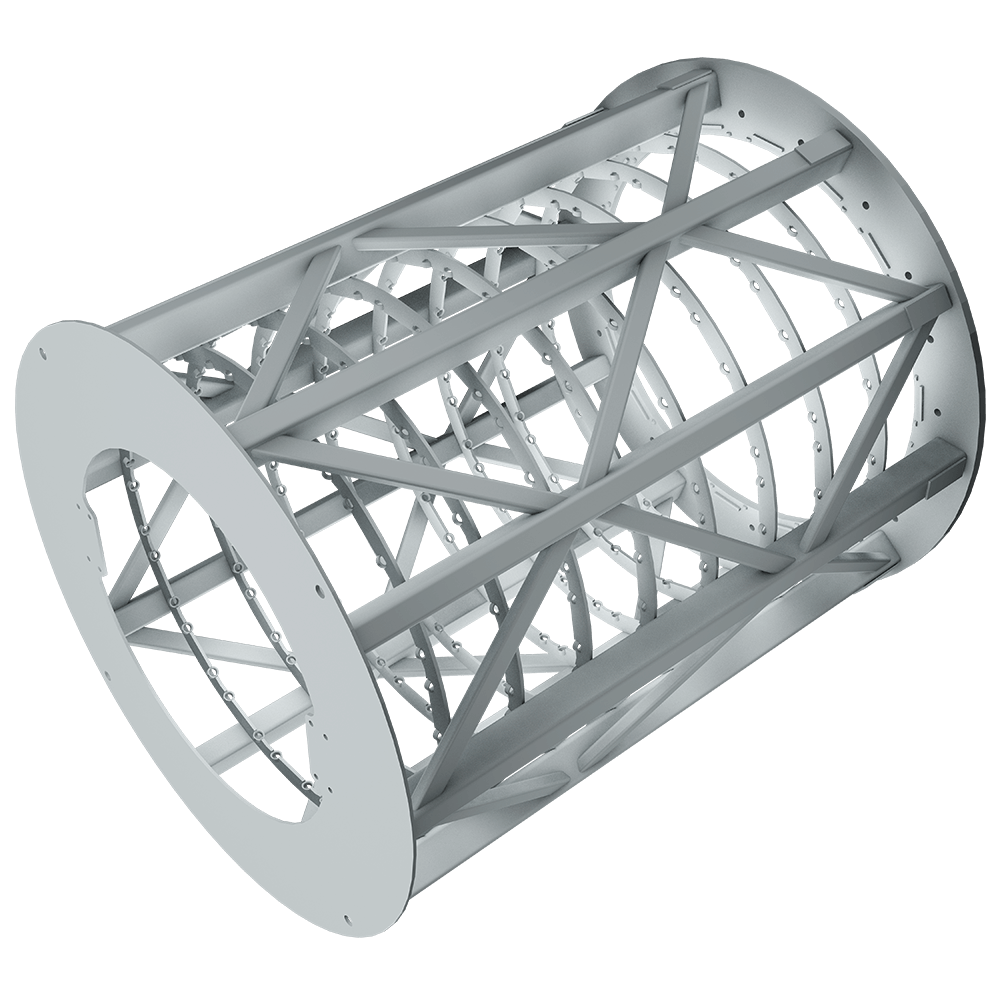

Pipetop trommel
Polydeck's PIPETOL Trommel

PIPETOP®

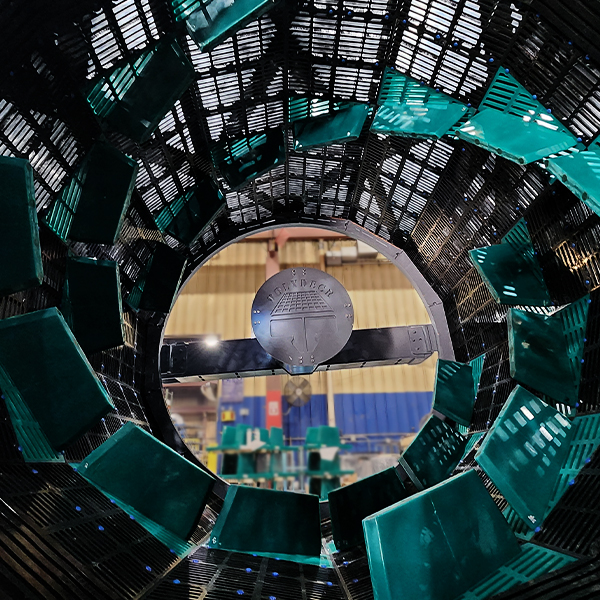

PIPETOP trommels are available in sizes up to a 40-panel circumference x 16’ long. Our interior gated helix design maximizes surface area presented to the slurry for greater material control and drainage rates.

Combine with PIPETOP stringers and Polydeck modular media for ultra high open area.
Panel Count (Per Circumference):
16 - 40 Panels (12" Wide/Panel)

Working Diameter:
5.1’ (61”) - 12.7’ (152”)

Length Range:
10’ (120”) - 16’ (192”)
Screen Media Options:
POLYDEX®
RUBBERDEX®
ARMADEX®

Media Thickness Options:
30mm/40mm/50mm

Fastening Options:
Pin
Pin & Sleeve
PolySnap® (Regular/Large Head)
Protective Options:
PROTEX® RC
PROTEX® PTP

Add-Ons:
Scrolls
Dams
Ball Catchers

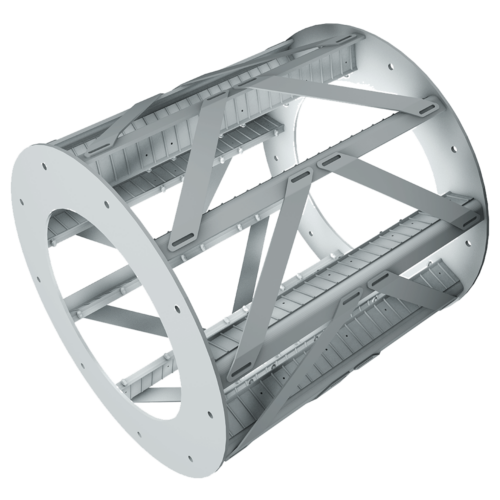

PROTOP™

PROTOP trommels are cost-effective, small format trommels that range from a 9-panel circumference x 4’ long to 14-panel circumference x 6’ long.

PROTOP trommels are best used for small volume screening or in tight spaces where installing large trommels is not possible. PROTOP trommels are designed with PolySnap® fastening for easy installation and maintenance.
Panel Count (Per Circumference):
9 - 14 Panels (12" Wide/Panel)

Working Diameter:
2.4' (29") - 4.1' (49")

Length Range:
4' (48") - 6' (72")
Screen Media Options:
POLYDEX®

Media Thickness Options:
30mm/40mm

Fastening Options:
PolySnap® (Regular)
Protective Add-Ons:
PROTEX® RC
PROTEX® UC

Add-Ons:
Scrolls
Dams
Ball Catchers

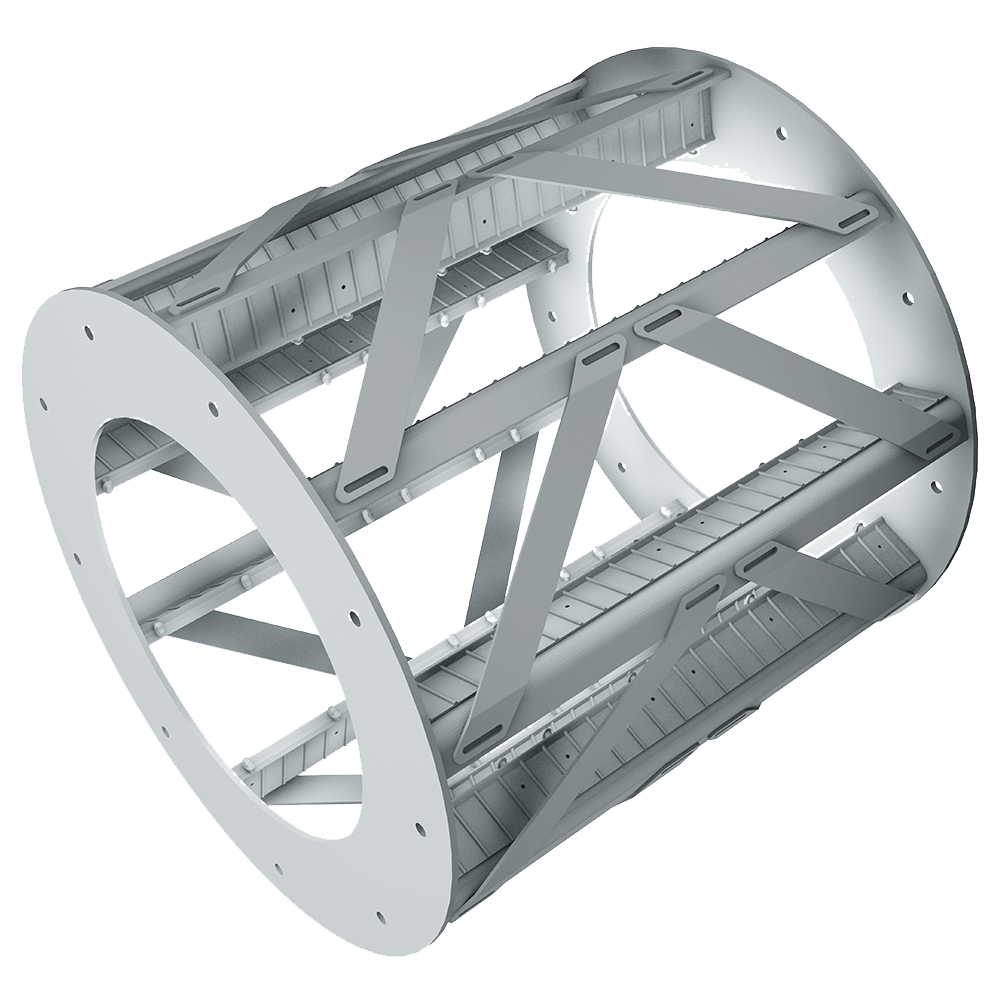

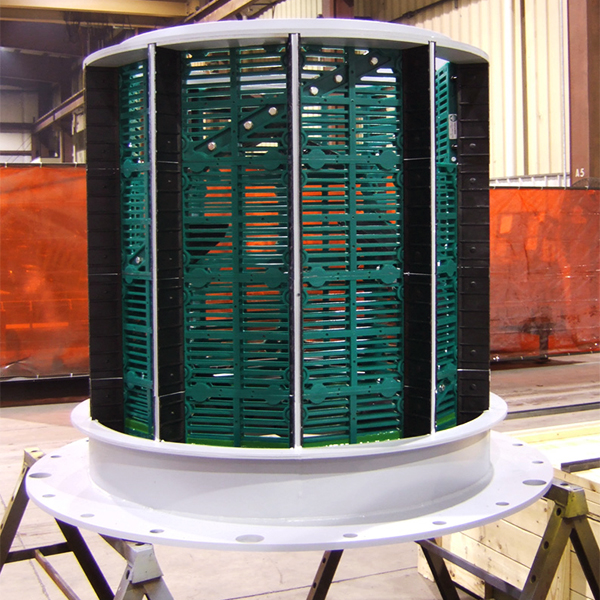

Protop trommel
Protop trommel
Polydeck's PROTOP Trommel
