Polyurethane screen panels engineered for versatility.

Plugging, blinding and premature wear cost you open area, throughput and maintenance time. Polydeck tackles these problems with POLYDEX® injection-molded polyurethane panels.

Engineered for wet, dry, sticky and high-moisture applications, POLYDEX is our most versatile line of modular screen media. It combines specialized polyurethane formulations, our broadest selection of aperture designs, and integrated features like dams and skid bars to elevate screening across a wide range of mining, aggregate, and coal applications.

Injection Mold Icon

Injection molded for uniform quality and dimensional consistency.

Options icon

Dozens of apertures, materials, and surface features to choose from.

Modular_Panels_Icon

Modular form for easy maintenance and safer changeouts.

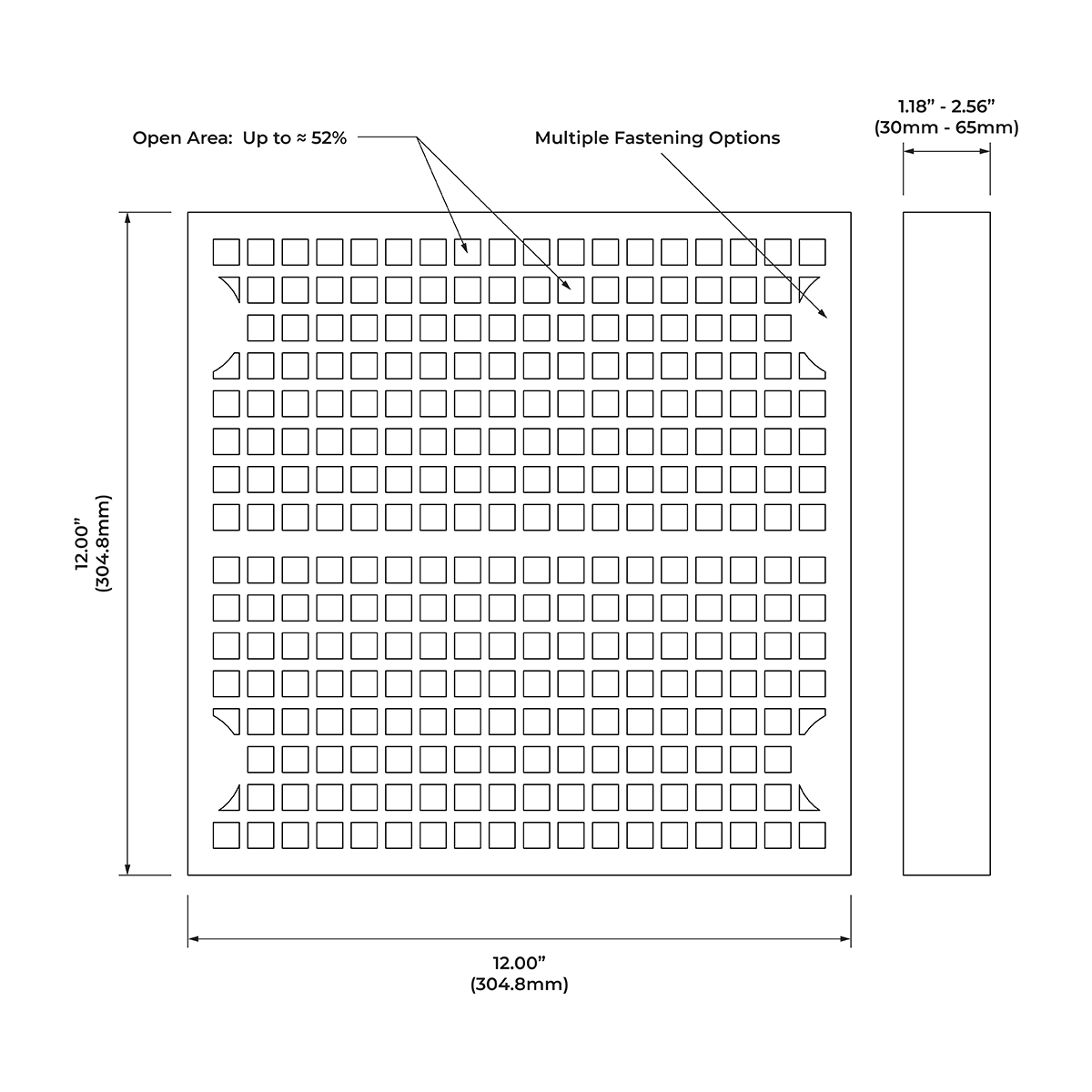

DMax Dimensions

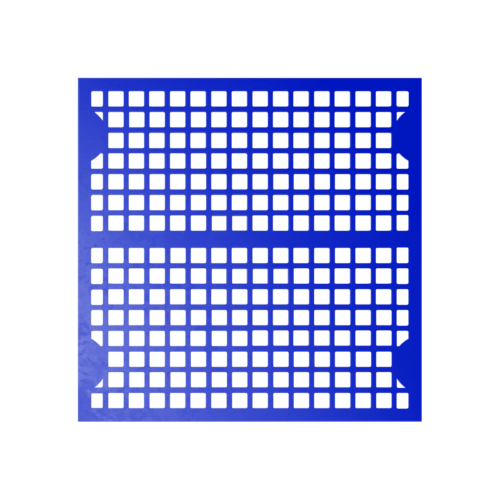

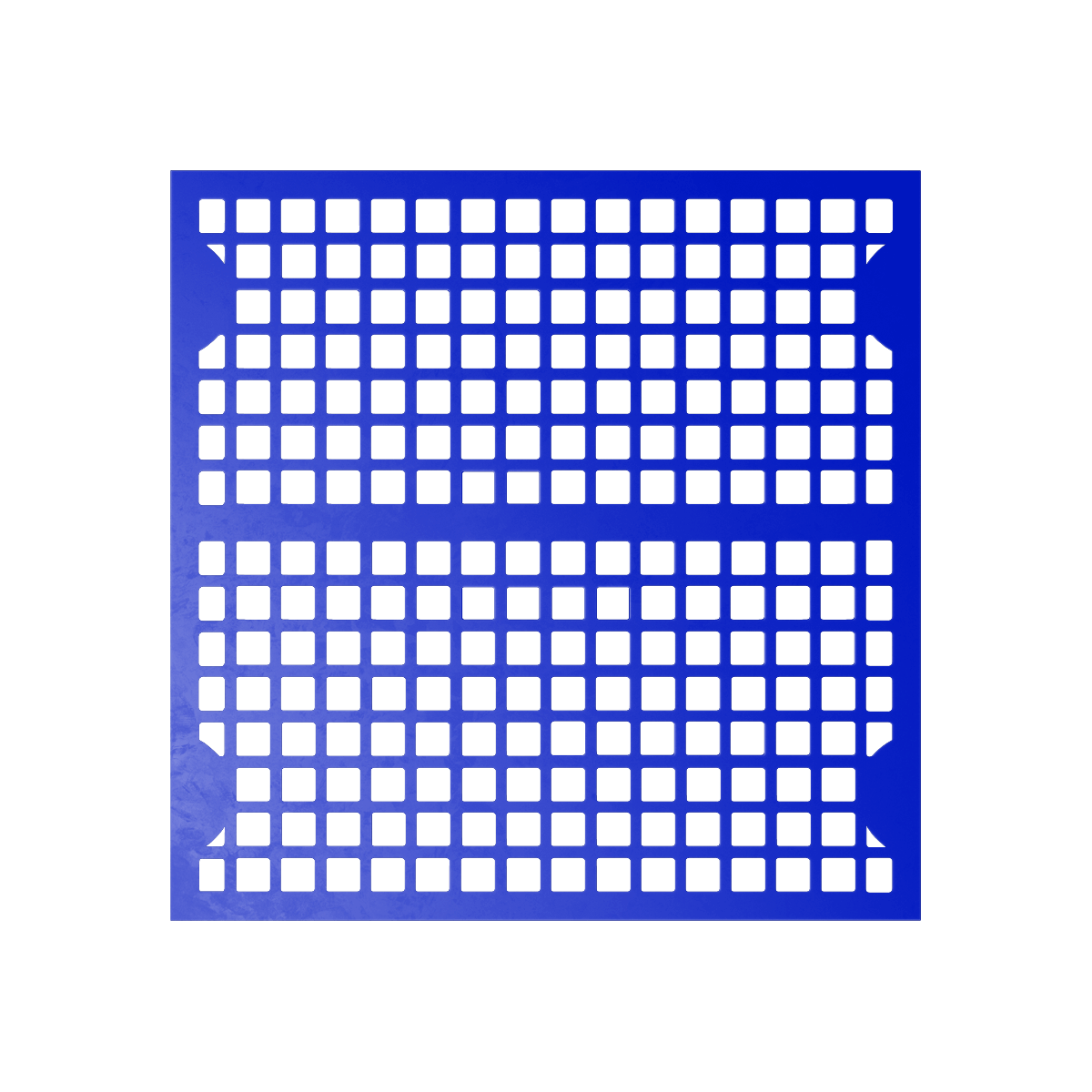

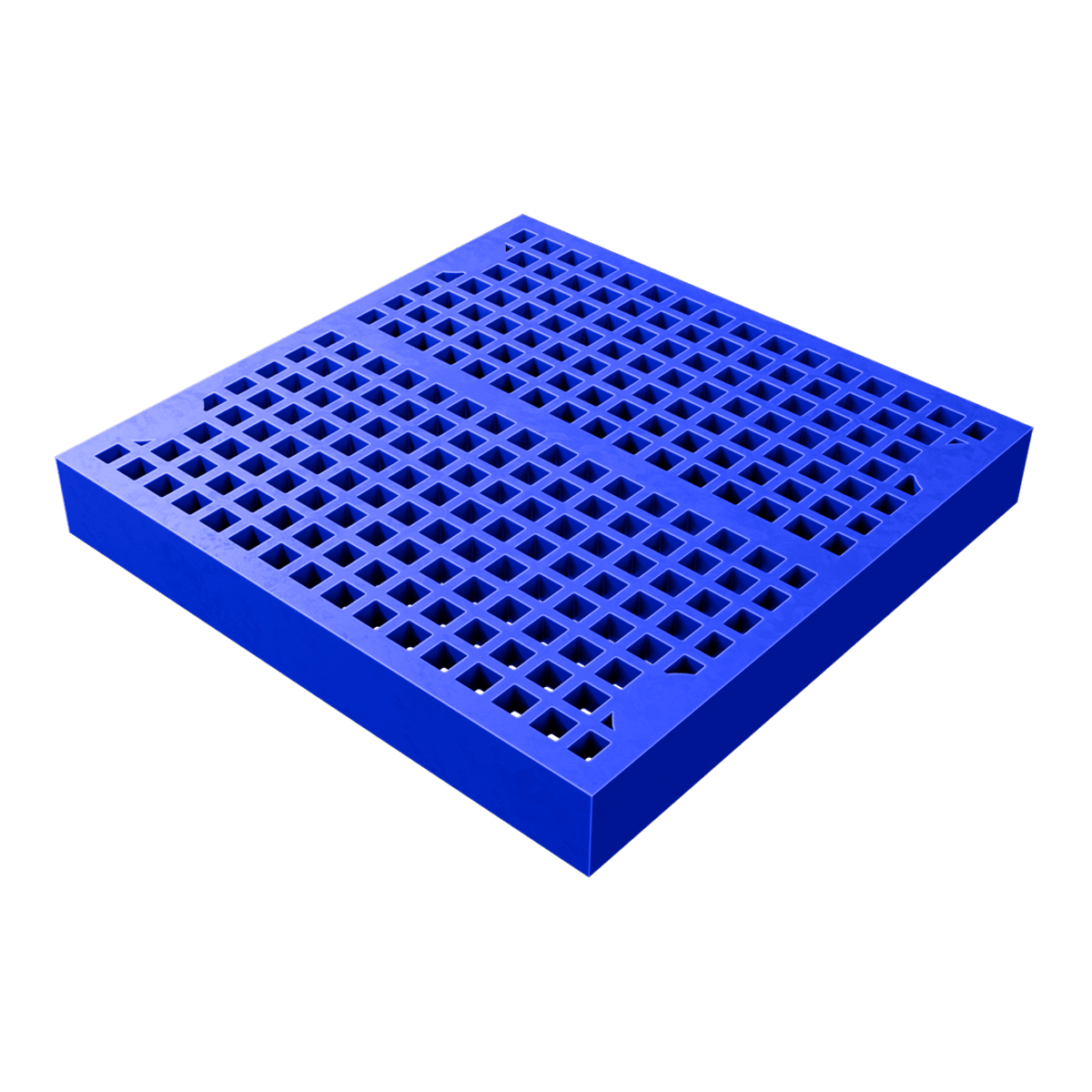

DMAX

POLYDEX DMAX features a high open area to help achieve greater throughput. This versatile polyurethane model is ideal for wet or dry screening in areas that require high efficiency separations. DMAX performs best when paired with our PIPETOP TM stringers.

Open Area:
Up to ~52%
Panel Size:
1' x 1'
Priority:
Open Area
Panel Thickness:
30mm - 65mm
Slotted:
[0.004" x 0.35"] - [5.91" x 6.89"]
[0.1mm x 9mm] - [150mm x 175mm]
Square:
0.08" - 7.87"
2mm - 200mm
Pin
PolySnap®
Dams
Deflectors

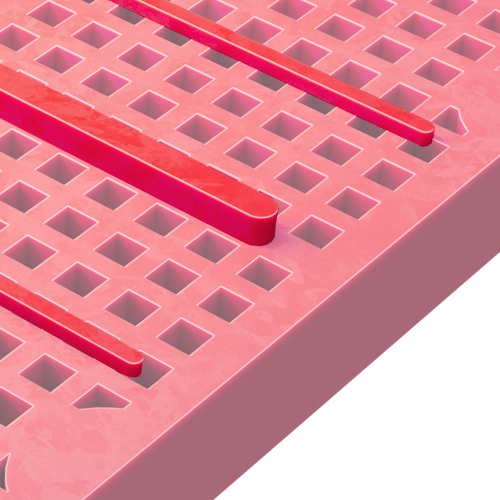

Restricted Flow Bars
Skid Bars

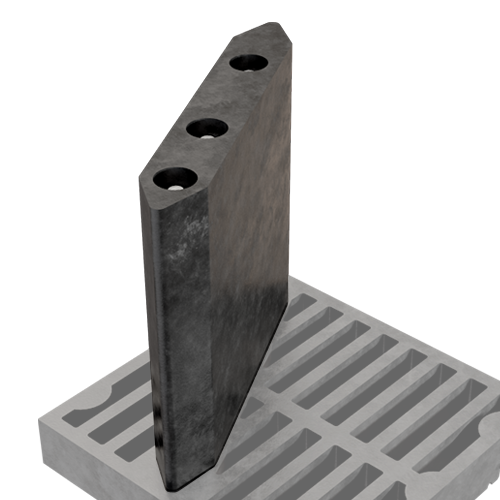

Bolt-On Scrolls

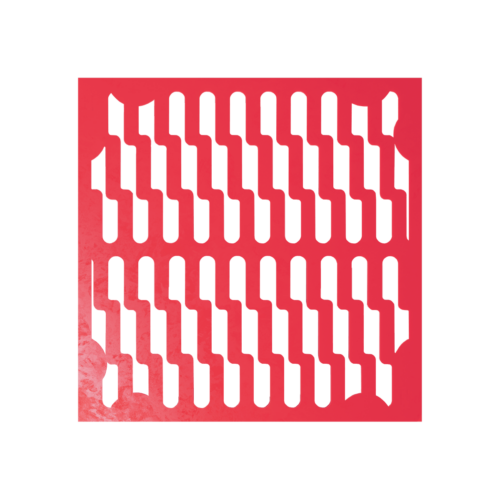

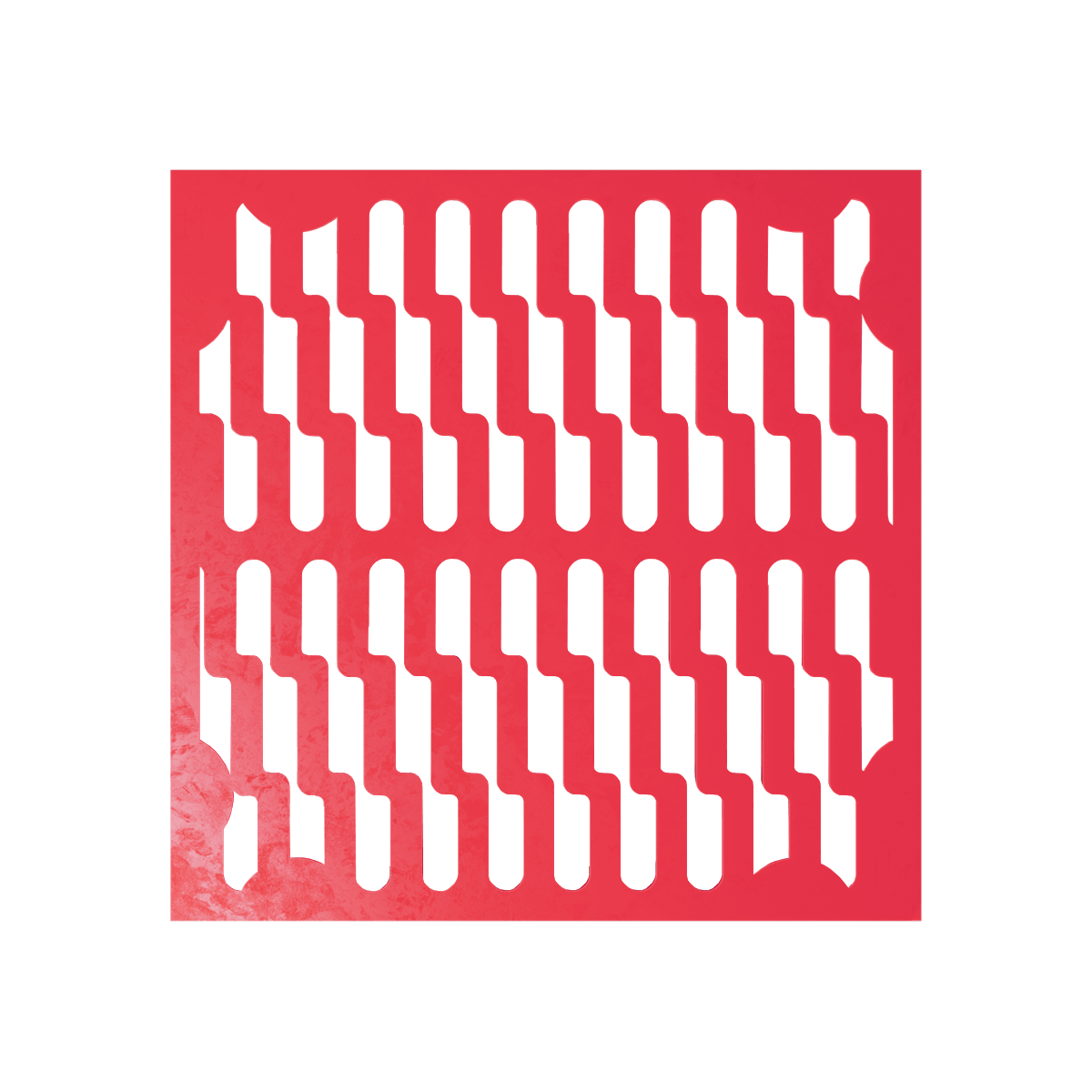

MAXI

Ideal for areas where high efficiency separations are needed, POLYDEX MAXI effectively balances the needs of wear life and open area. This versatile model offers numerous aperture designs, including configurations proven to help minimize plugging and aid in particle stratification. MAXI performs best when paired with our PIPETOPTM stringers.

Open Area:
Up to ~33%
Panel Size:
1' x 1'
Priority:
Balanced Wear Life & Open Area
Panel Thickness:
30mm - 65mm

SVR:
[0.03" x 0.28"] - [1.5" x 2.17"
[0.65mm x 7mm] - [39mm x 55mm]
Slotted:
[0.004" x 0.35"] - [5.91" x 6.89"]
[0.1mm x 9mm] - [150mm x 175mm]
Continuous Slot:
0.03" - 0.08"
0.65mm - 2mm
Square:
0.08" - 7.87"
2mm - 200mm
Herringbone:
0.04" - 0.12"
1mm - 3mm
Cutter:
0.04"
1mm
VST:
0.03" - 0.04"
0.65mm - 1mm
Pin
PolySnap®
Dams
Deflectors
Restricted Flow Bars
Skid Bars
Bolt-On Scrolls

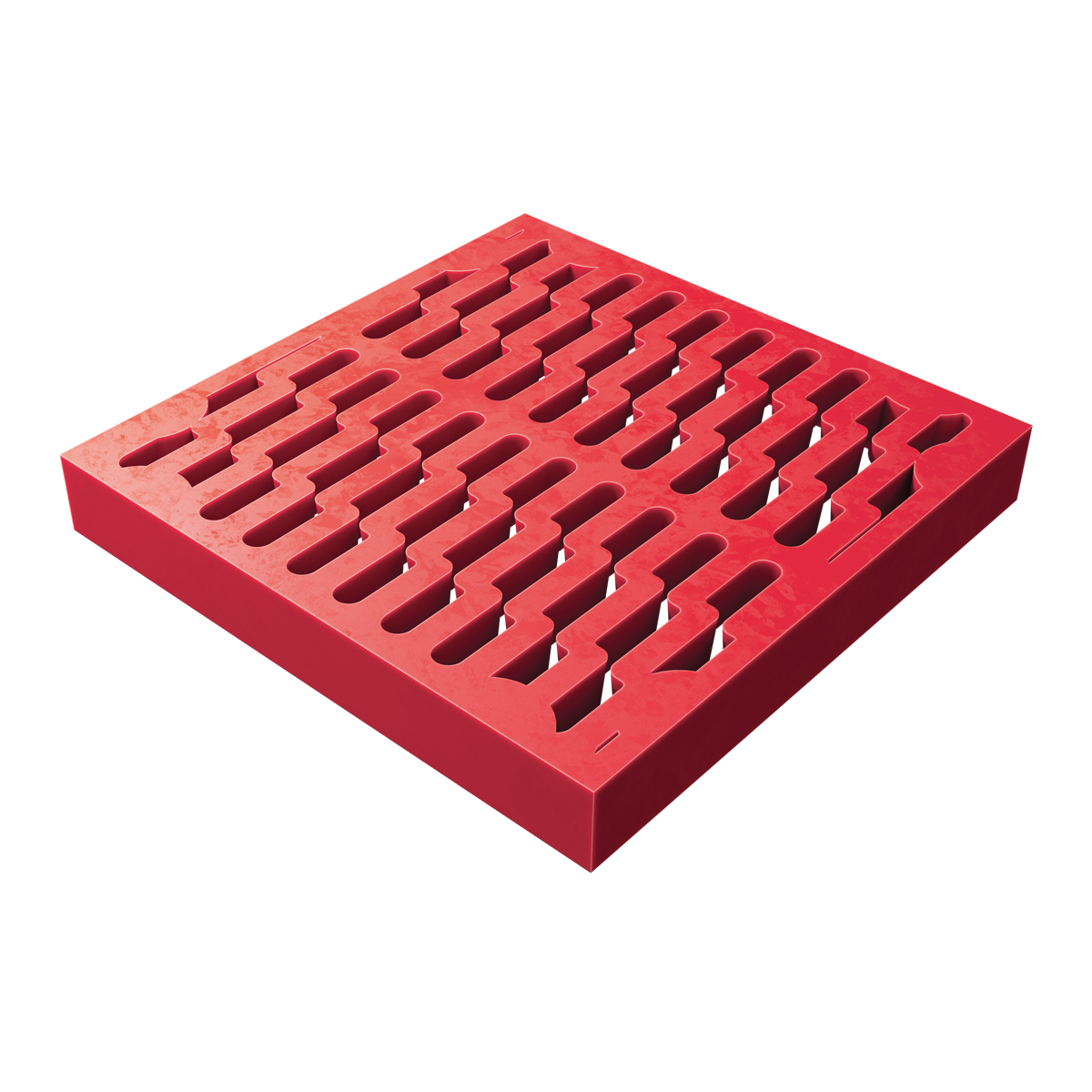

MAXI 3QTR view

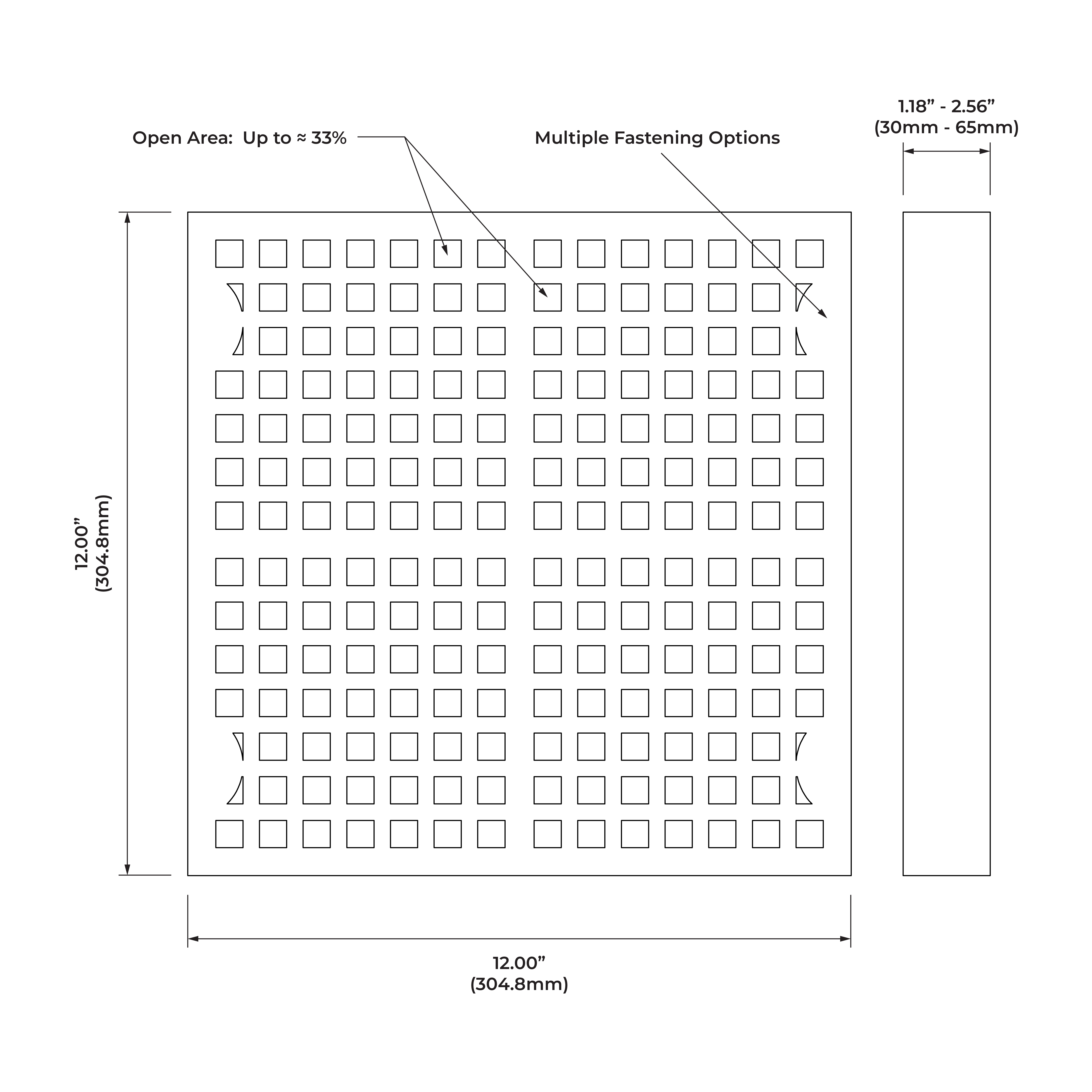

MAXI Dimensions

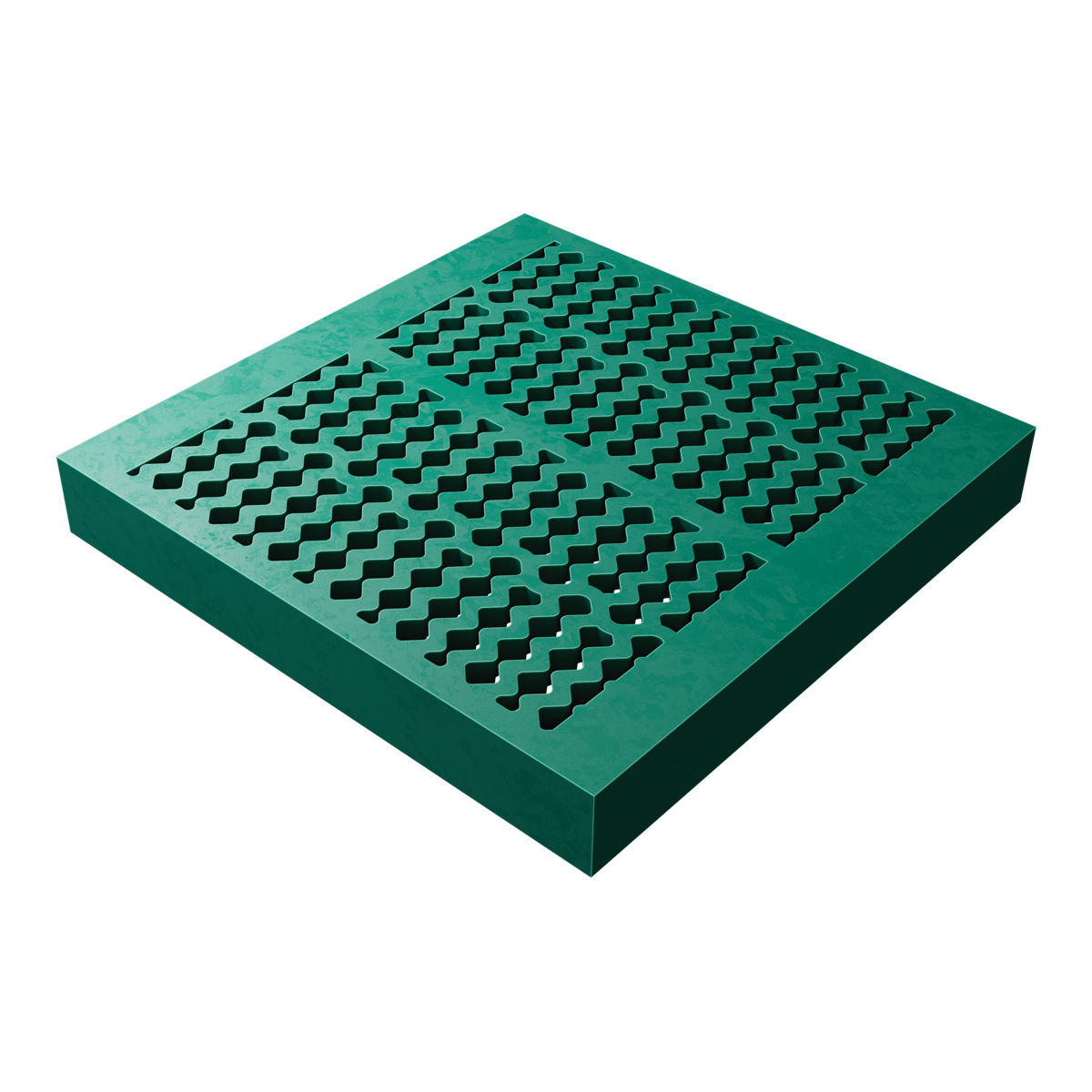

EOP 3QTR view

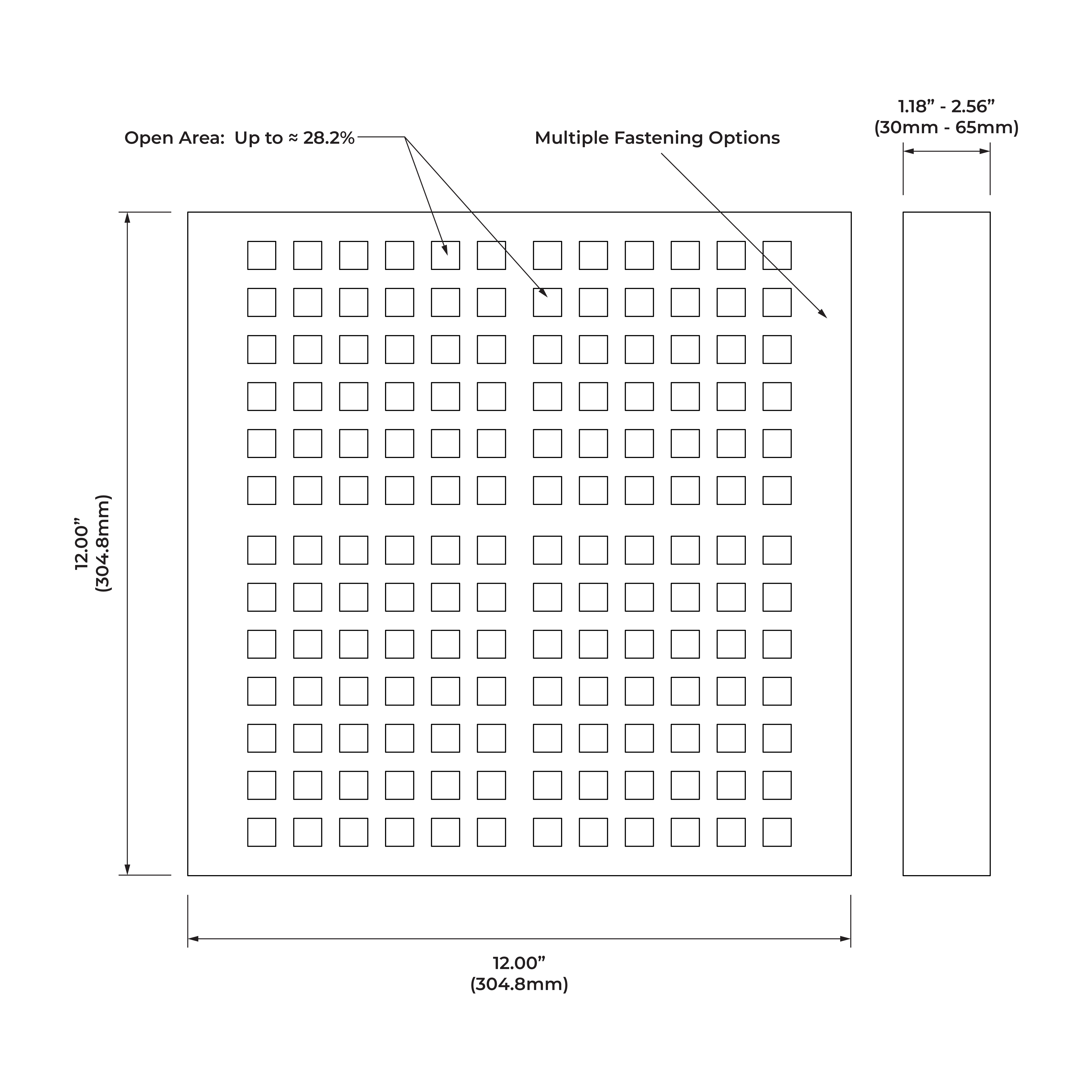

EOP Dimensions

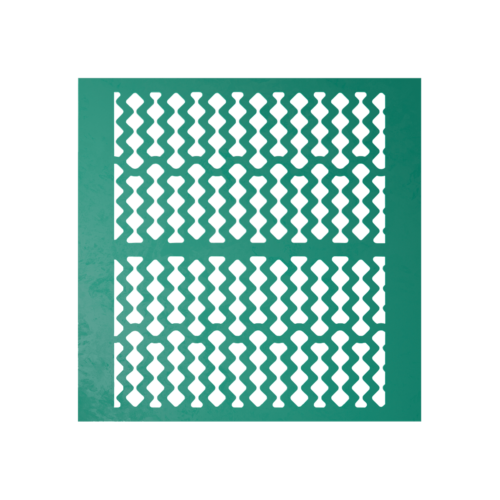

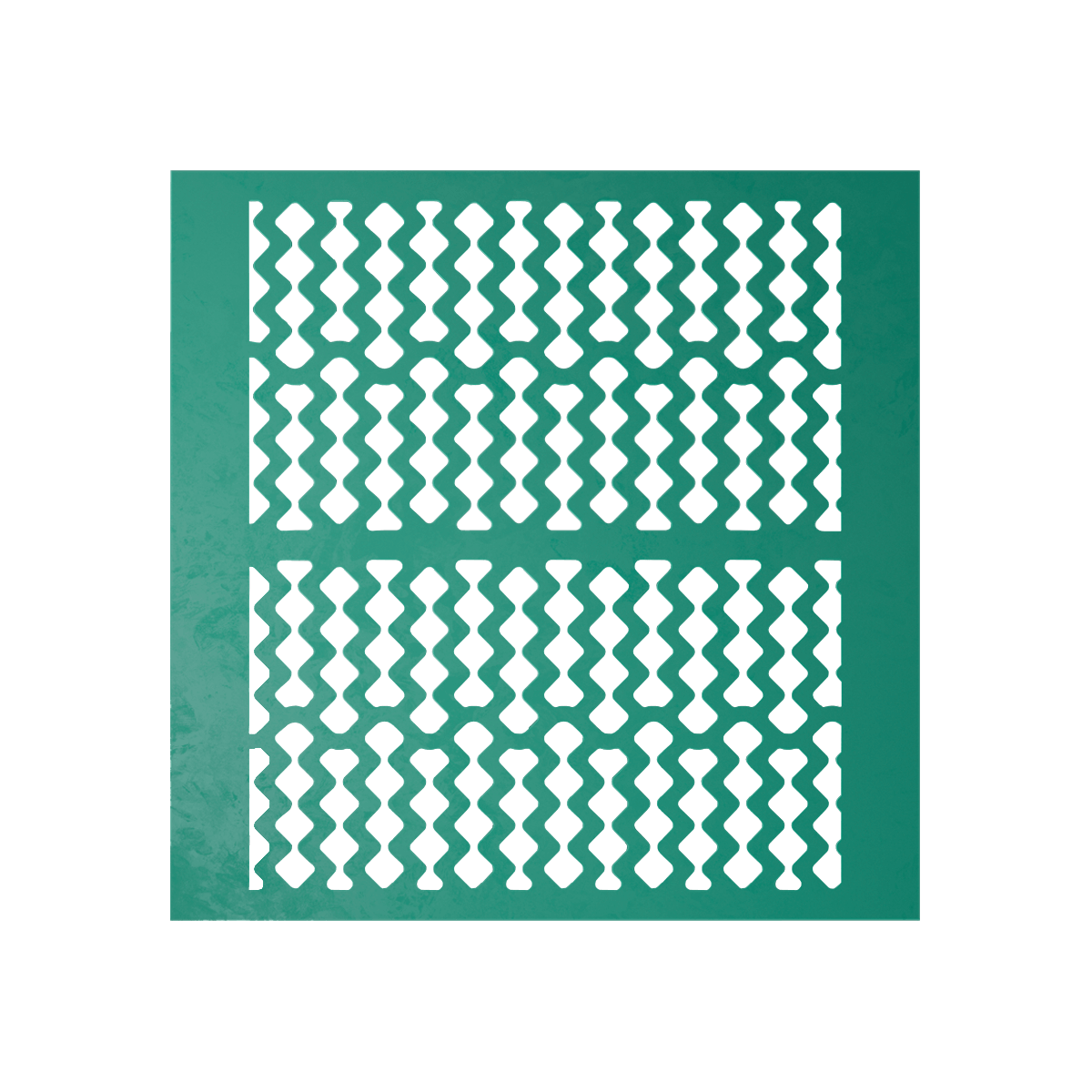

EOP

Designed for retrofitting existing setups, EOP brings POLYDEX performance to legacy stringer systems with minimal structural modification. Its wider solid side margins accommodate broader stringers while providing additional material for wear protection.

Open Area:
Up to ~28.2%
Panel Size:
1' x 1'
Priority:
Wear Life
Panel Thickness:
30mm - 65mm
VR:
0.08" - 3.54"
2mm - 90mm
Slotted:
[0.004" x 0.35"] - [5.91" x 6.89"]
[0.1mm x 9mm] - [150mm x 175mm]
Square:
0.08" - 7.87"
2mm - 200mm
Solid:
--
--
Pin
PolySnap®
PolyRail™ (2' x 1' only)
SnapRail™ IS
SnapRail™ MC
SnapRail™ TX
Dams
Deflectors
Restricted Flow Bars
Skid Bars
Bolt-On Scrolls

POLYDEX in action.

Check out these case studies for real-world examples of how POLYDEX panels have helped aggregate and mining operations increase efficiency and throughput and solve problems like screen blinding and plugging

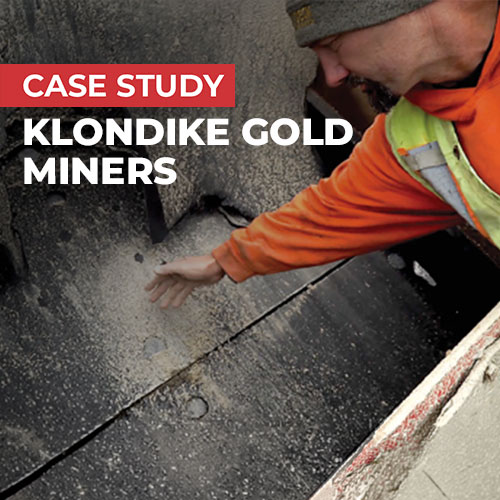

Klondike Gold Miners Achieve Major Production Gains

Read More

How Bell Creek Gold Mine Solved Screen Blinding on Trash Circuit Screens

Read More

How Stoneway Sumner Solved Screen Plugging and Blinding in Wet Conditions

Read More

How Toquepala Mine Reduced Plugging and Improved Mill Feed Efficiency

Read More

How a Leading Aggregate Producer Increased Throughput by 1.5x

Read More

Frequently Asked Questions (FAQs)

Get clear answers to the most common questions related to POLYDEX’s design, performance, and operational advantages.

What are the key benefits of POLYDEX?
POLYDEX is Polydeck’s most versatile screen media, offering the greatest number of aperture designs and formulations. And while it excels in wet screening, its versatility allows it to be used in both wet and dry applications. The polyurethane helps extend the panel’s wear life and dampen the sound of rock on metal, reducing your plant’s operational noise by 5–15 dB.
Will I lose open area and throughput if I switch from wire cloth?
Not necessarily. Although some polyurethane panels have less theoretical open area than wire cloth, DMAX can provide comparable effective open area and throughput. Other POLYDEX models balance open area with longer wear life, reduced blinding, and fewer maintenance interruptions.

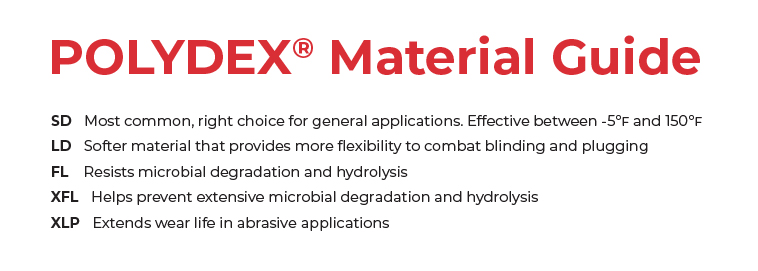

What polyurethane formulation is used in POLYDEX?
POLYDEX screen media is available in four different formulations, including those specifically designed for microbial and hydrolysis resistance, self cleaning, or wear resistance.
What shapes and sizes of apertures are available in POLYDEX panels?
POLYDEX offers our most versatile array of apertures. A total of 10 different aperture designs are represented, ranging from solid to the patented VST (vector slot technology), ideal for dewatering. Most apertures come in their own unique size ranges, but customized size can often be accommodated when needed.
What types of attachment or fastening systems are available for POLYDEX panels?
Most POLYDEX panels affix with either pins or PolySnap® fasteners; however, the EOP design offers additional attachment options (PolyRail™ and SnapRail™ IS, MC, and TX), making it a convenient option for retrofitting.
How can I tell when a POLYDEX panel needs replacement?
The most proactive method of gauging the need for panel replacement is periodic visual inspections. Look for wear patterns and wear hotspots, such as thinning apertures or sagging sections, as well as obvious damage like rips or punctures.

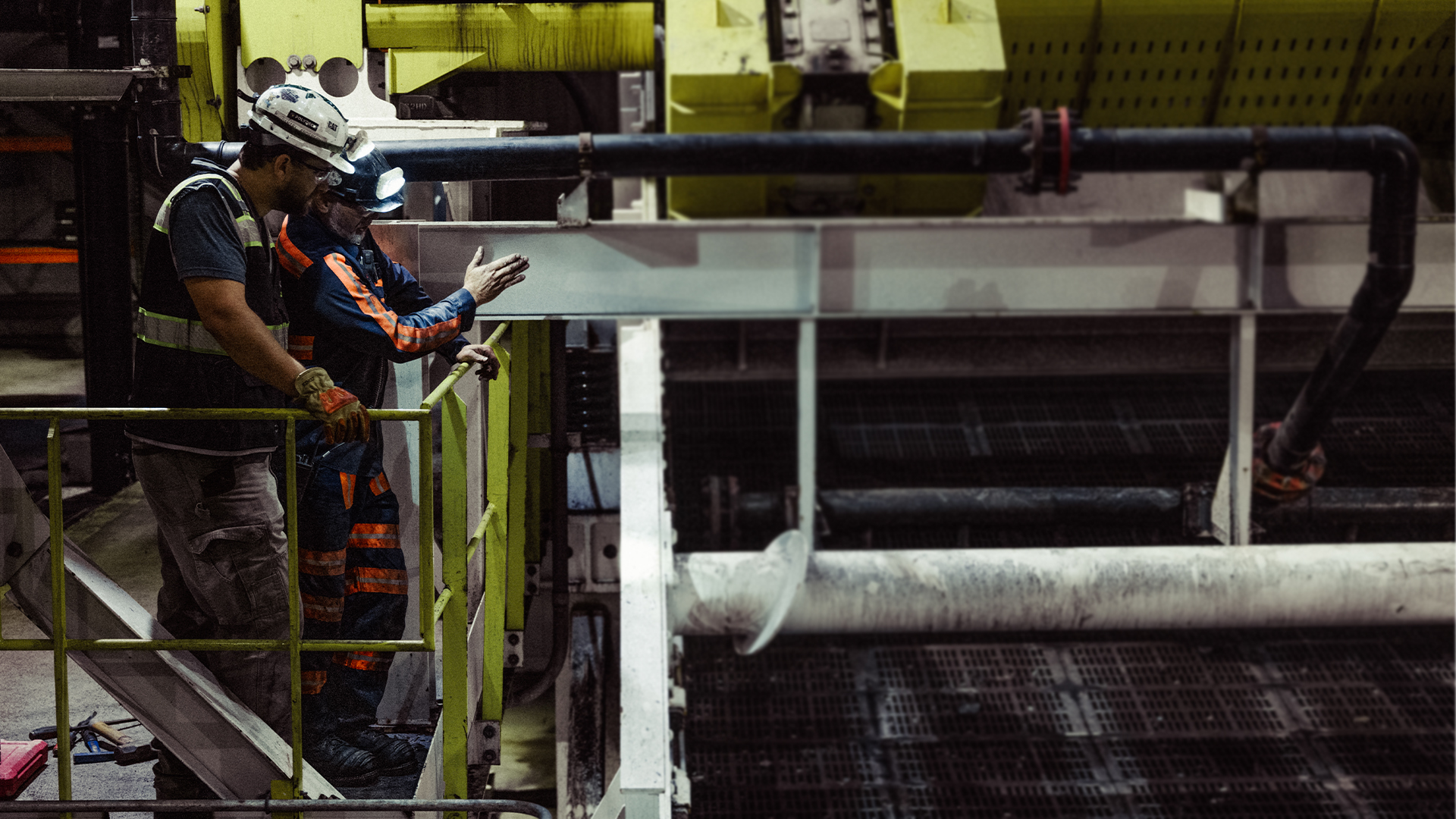

Two manufacturing facility employees
