INJECTION MOLDED POLYURETHANE MEDIA

Request a Quote
Download Spec Sheet

Engineered for versatility.

Our line of injection-molded modular polyurethane media is our most versatile line of modular screen media. Available in thousands of configurations, POLYDEX is effective across a wide range of general applications.

Injection Mold Icon

Injection molded for uniform quality and dimensional consistency.

Options icon

Dozens of apertures, materials, and surface features to choose from.

Modular_Panels_Icon

Modular form for easy maintenance and safer changeouts.

STD 3QTR view
STD 3QTR view
STD Top view
STD Dimensions diagram

STANDARD

Open Area:
Up to ~23%
Panel Size:
1' x 1'
Priority:
Wear Life
Panel Thickness:
30mm - 65mm
VR:
0.08" - 3.54"
2mm - 90mm
Slotted:
[0.004" x 0.35"] - [5.91" x 6.89"]
[0.1mm x 9mm] - [150mm x 175mm]
Square:
0.08" - 7.87"
2mm - 200mm
Round:
2.36" - 2.56"
60mm - 65mm
Solid:
--
--
Pin
PolySnap®
PolyRail™
2' x 1' only
Dams
Deflectors
Restricted Flow Bars
Skid Bars
Bolt-On Scrolls

EOP

Open Area:
Up to ~28.2%
Panel Size:
1' x 1'
Priority:
Wear Life
Panel Thickness:
30mm - 65mm
VR:
0.08" - 3.54"
2mm - 90mm
Slotted:
[0.004" x 0.35"] - [5.91" x 6.89"]
[0.1mm x 9mm] - [150mm x 175mm]
Square:
0.08" - 7.87"
2mm - 200mm
Solid:
--
--
Pin
PolySnap®
PolyRail™
2' x 1' only
Dams
Deflectors
Restricted Flow Bars
Skid Bars
Bolt-On Scrolls
STD 3QTR view
STD 3QTR view
STD Top view
STD Dimensions diagram
MAXI 3QTR view
MAXI 3QTR view
MAXI Top view
MAXI Dimensions

MAXI

Open Area:
Up to ~33%
Panel Size:
1' x 1'
Priority:
Balanced Wear Life & Open Area
Panel Thickness:
30mm - 65mm
SVR:
[0.03" x 0.28"] - [1.5" x 2.17"
[0.65mm x 7mm] - [39mm x 55mm]
Slotted:
[0.004" x 0.35"] - [5.91" x 6.89"]
[0.1mm x 9mm] - [150mm x 175mm]
Continuous Slot:
0.03" - 0.08"
0.65mm - 2mm
Square:
0.08" - 7.87"
2mm - 200mm
Herringbone:
0.04" - 0.12"
1mm - 3mm
Cutter:
0.04"
1mm
VST:
0.03" - 0.04"
0.65mm - 1mm
Pin
PolySnap®
PolyRail™
2' x 1' only
Dams
Deflectors
Restricted Flow Bars
Skid Bars
Bolt-On Scrolls

DMAX

Open Area:
Up to ~52%
Panel Size:
1' x 1'
Priority:
Open Area
Panel Thickness:
30mm - 65mm
Slotted:
[0.004" x 0.35"] - [5.91" x 6.89"]
[0.1mm x 9mm] - [150mm x 175mm]
Square:
0.08" - 7.87"
2mm - 200mm
Pin
PolySnap®
PolyRail™
2' x 1' only
Dams
Deflectors
Restricted Flow Bars
Skid Bars
Bolt-On Scrolls

We guarantee results.

We understand how important hitting your production goals are. That’s why all Polydeck products are backed by our risk-free Performance Guarantee.

If using Polydeck doesn't bring longer wear life, reduced maintenance costs, or proper product specifications, we will replace your purchase until you do at no extra cost to you.

Learn More

Join thousands who screen better with Polydeck.

45+

Years In Business

5500+

Sites Using Polydeck

40+

Direct Sales Reps

95%

Global Customer Satisfaction

Polydex Logo White

SUPERIOR QUALITY. SUPERIOR VERSATILITY.

Request a Quote
Download Spec Sheet
Polydeck's catalog cover

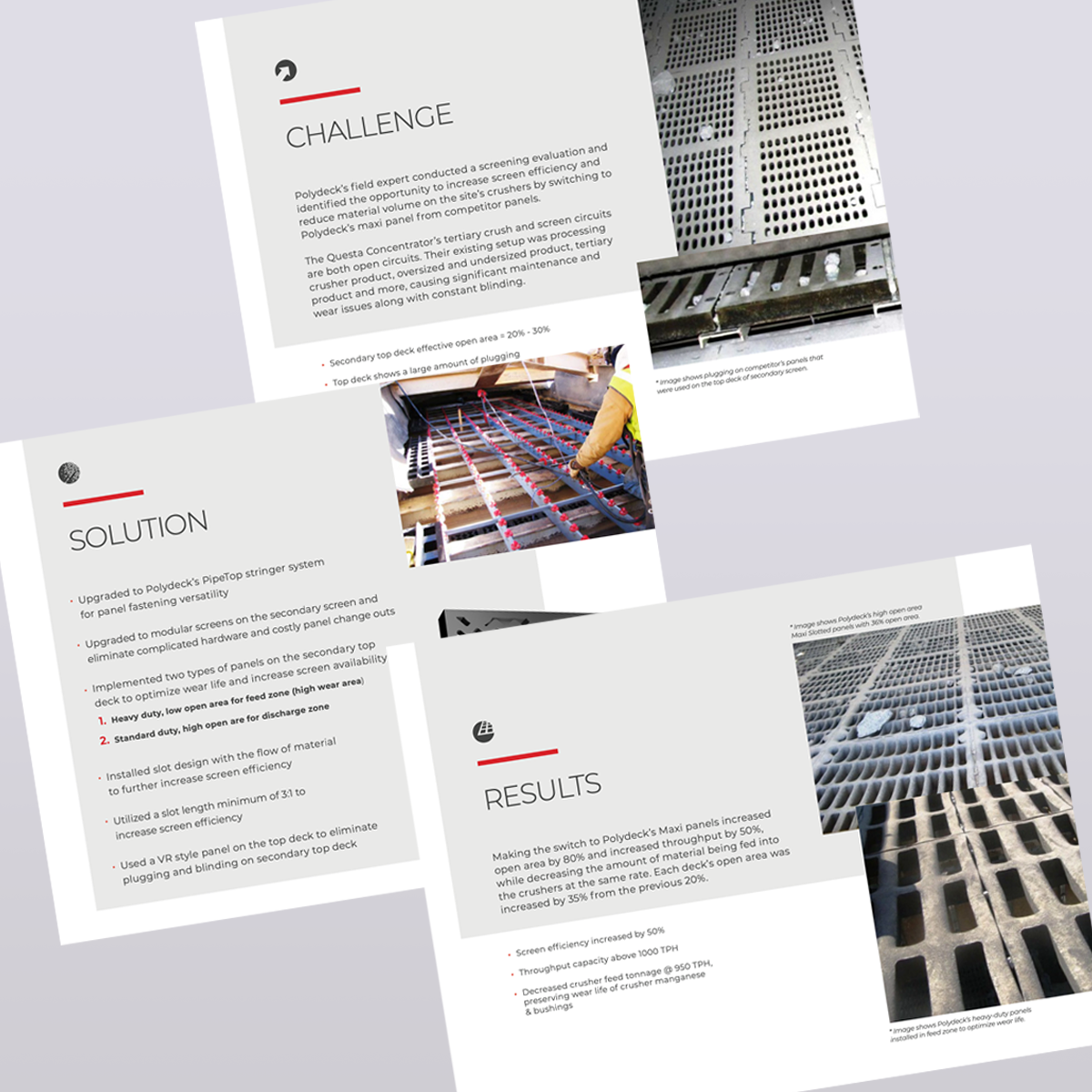

Case_Studies
