Rubberdex

INJECTION MOLDED MODULAR RUBBER SCREEN MEDIA

Request a Quote
Download Spec Sheet

Rubber screen media designed for resilience and durability.

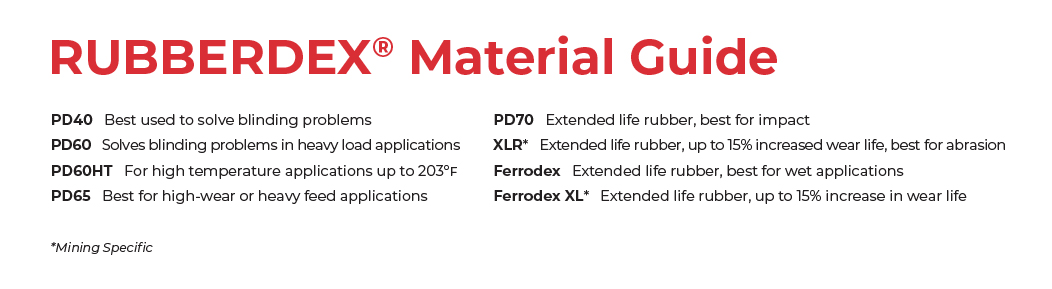

Our line of injection molded modular rubber screen media, RUBBERDEX️ is designed with resilience and durability in mind. Available in multiple rubber formulations, it reduces screen operation noise and suits applications where gouging and abrasion are prevalent.

safety icon

Lasts longer in applications with heavy gouging and abrasion.

Modular_Panels_Icon

Modular form for easy maintenance and safer changeouts.

Injection Mold Icon

Injection molded for uniform quality and dimensional consistency.

ULTRAMAX

Designed for ultra high throughput with a lower noise threshold, ULTRAMAX is ideal for applications that need high efficiency separations. With a high open area that matches or exceeds traditional wire cloth, this durable rubber panel excels at fines separation in both wet and dry conditions. It performs best when paired with our PIPETOP® stringers.

Open Area:
Up to ~57.6%
Panel Size:
1' x 2'
Priority:
Ultra High Open Area
Panel Thickness:
30mm - 100mm

Square:
0.08” – 5.98”
(2mm – 152mm)
Pin
PolySnap®
PolyRail™ (2' x 1' only)
Bolt-Down
Pin & Sleeve
Dams
Skid Bars
ULTRAMAX rubber screening panel - front view
ULTRAMAX rubber screening panel - front view
ULTRAMAX rubber screening panel - angled view
ULTRAMAX dimensions diagram
DMAX rubber screening panel with slotted apertures - front view
DMAX rubber screening panel with slotted apertures - angled view
DMAX dimensions diagram

DMAX

Get high open area paired with RUBBERDEX’s resilient wear life and noise reduction with DMAX. For optimal performance, pair with our PIPETOP® stringers. Designed for high throughput, this model is ideal for high-abrasion areas that require high efficiency separations.

Open Area:
Up to ~56.2%
Panel Size:
1' x 2'
Priority:
Open Area
Panel Thickness:
30mm - 100mm
Slotted:
0.02” x 0.39” – 7” x 8.5”
(0.5mm x 10mm – 177.8mm x 215.9mm)
Square:
0.08” – 5.98”
(2mm – 152mm)
Pin
PolySnap®
PolyRail™ (2' x 1' only)
Bolt-Down
Pin & Sleeve
Dams
Skid Bars

MAXI

With slightly wider borders than our DMAX model, MAXI provides even more abrasion resistance while maintaining a high throughput. It performs best when paired with our PIPETOP® stringers. This model is ideal for areas where high efficiency separations are needed.

Open Area:
Up to ~52.4%
Panel Size:
1' x 2'
Priority:
Balanced Wear Life & Open Area
Panel Thickness:
30mm - 100mm

Slotted:
0.02” x 0.39” – 7” x 8.5”
(0.5mm x 10mm – 177.8mm x 215.9mm)
Square:
0.08” – 5.98”
(2mm – 152mm)
HVR:
1.02” – 4.92”
(26mm – 125mm)
Pin
PolySnap®
PolyRail™ (2' x 1' only)
Bolt-Down
Pin & Sleeve
Dams
Skid Bars
MAXI rubber screening panel with square apertures - front view
MAXI rubber screening panel with square apertures - front view
MAXI rubber screening panel with square apertures - angled view
MAXI dimensions diagram
EOP rubber screening panel with VR apertures - front view
EOP rubber screening panel with VR apertures - angled view
EOP dimensions diagram

EOP

Designed with wider lateral margins, EOP is best suited for retrofitting, bringing RUBBERDEX’s extended wear life to existing legacy stringer systems. This model is ideal for wider stringer widths and situations where extra clamping surface and rail protection is necessary.

Open Area:
Up to ~47.1%
Panel Size:
1' x 2'
Priority:
Wear Life
Panel Thickness:
30mm - 100mm
VR:
0.43” – 3.54”
(11mm – 90mm)
Slotted:
0.02” x 0.39” – 7” x 8.5”
(0.5mm x 10mm – 177.8mm x 215.9mm)
Square:
0.08” – 5.98”
(2mm – 152mm)
SVR:
0.39” x 1.57” – 5.55” x 10.04”
(10mm x 40mm – 141mm x 255mm)
Round:
3.46” – 9.06”
(88mm – 230mm)
Solid:
--
--
HVR:
1.02” – 4.92”
(26mm – 125mm)
Pin
PolySnap®
PolyRail™ (2' x 1' only)
Bolt-Down
Pin & Sleeve
SnapRail™ IS
SnapRail™ DX
SnapRail™ SK
Dams
Skid Bars

XTREME

The newest addition to the RUBBERDEX line, XTREME provides bolt-down level protection with modular convenience. It features an integrated 3/8" steel backing plate and has up to 30% more wear life than typical modular media with inserts. This model is ideal for heavily loaded or highly abrasive applications where margin separation is prominent, like mill discharge or primary scalping applications.

Aperture Size:
1.3” (35mm) and higher
Panel Size:
1' x 2'
Priority:
Extended Wear Life
Panel Thickness:
50mm - 100mm
Slotted:
1.3" or higher
(35mm or higher)
Square:
1.3" or higher
(35mm or higher)
Round:
1.3" or higher
(35mm or higher)
Solid:
--
--
Bolt-Down
Pin & Sleeve
Download Spec Sheet
XTREME rubber screening panel with square apertures - front view
XTREME rubber screening panel with square apertures - angled view
XTREME dimensions diagram

RUBBERDEX in action.

Check out these case studies for real-world examples of how RUBBERDEX panels have helped mining operations increase efficiency and solve problems like screen blinding and plugging.

How Questa Mine Solved Blinding & Boosted Screen Efficiency

Read More

How Pinto Valley Increased Throughput by 25% with Smarter Panel Selection

Read More

How Montana Resources Improved Crusher Efficiency

Read More

How Coeur Wharf Gold Mine Overcame Screen Blinding and Plugging in Freezing Conditions

Read More

Frequently Asked Questions (FAQs)

Get clear answers to the most common questions related to RUBBERDEX’s design, performance, and operational advantages.

Can I use RUBBERDEX panels on my existing screen frame without a full overhaul?

While we recommend using our PIPETOP™ stringers with most RUBBERDEX panels, we can retrofit most of our screen media to work with existing screen frames, depending on the type of stringer and its fastening system. Speaking with a Screening Expert will help determine whether retrofitting is a good option.

How much quieter will my plant be with RUBBERDEX screen media?
If you’re transitioning from steel or wire cloth, you can expect a noise reduction of 9–10 decibels. While the remaining noise level will depend on what other machinery your plant runs, you may be able to downgrade your plant’s hearing protection from double to standard.
Can RUBBERDEX stop my screens from blinding in wet/sticky conditions?

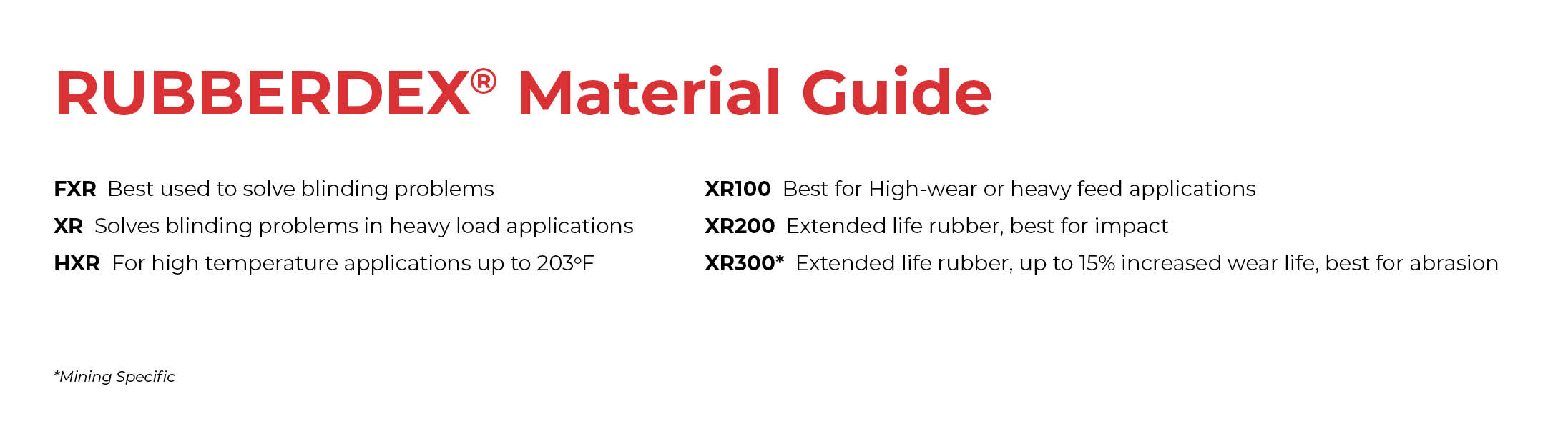

Rubber panels have a lower modulus than polyurethane, letting them naturally vibrate and expel near-sized particles that could get stuck in other media. Our FXR, or “flexi,” formulations are designed to combat blinding in fine sizing applications with high moisture content.
