SIDE WEAR PLATES

Engineered for protection.

PROTEX SL side wear plates are designed to hold your media in place while protecting the sides of your vibrating screen from excessive wear.

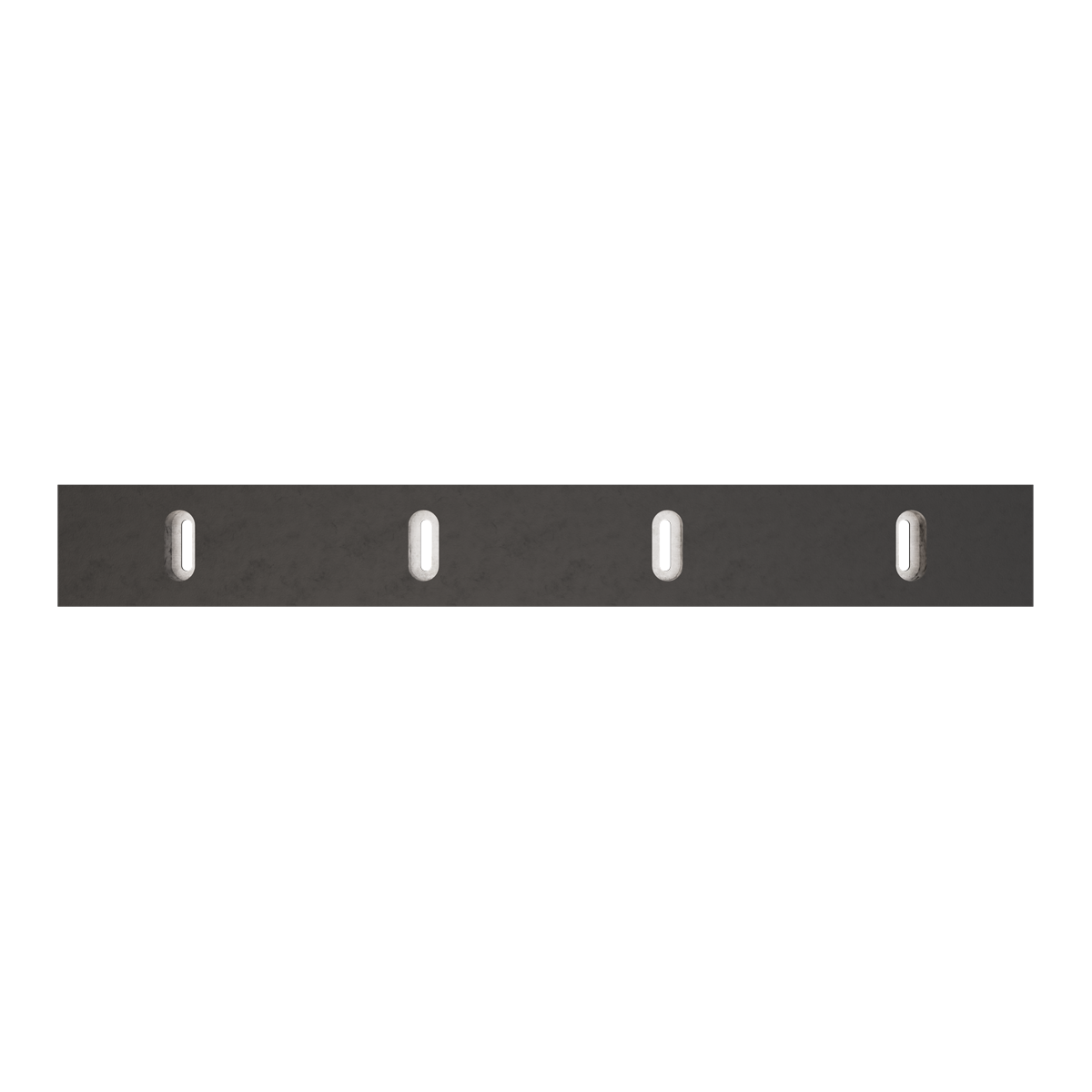

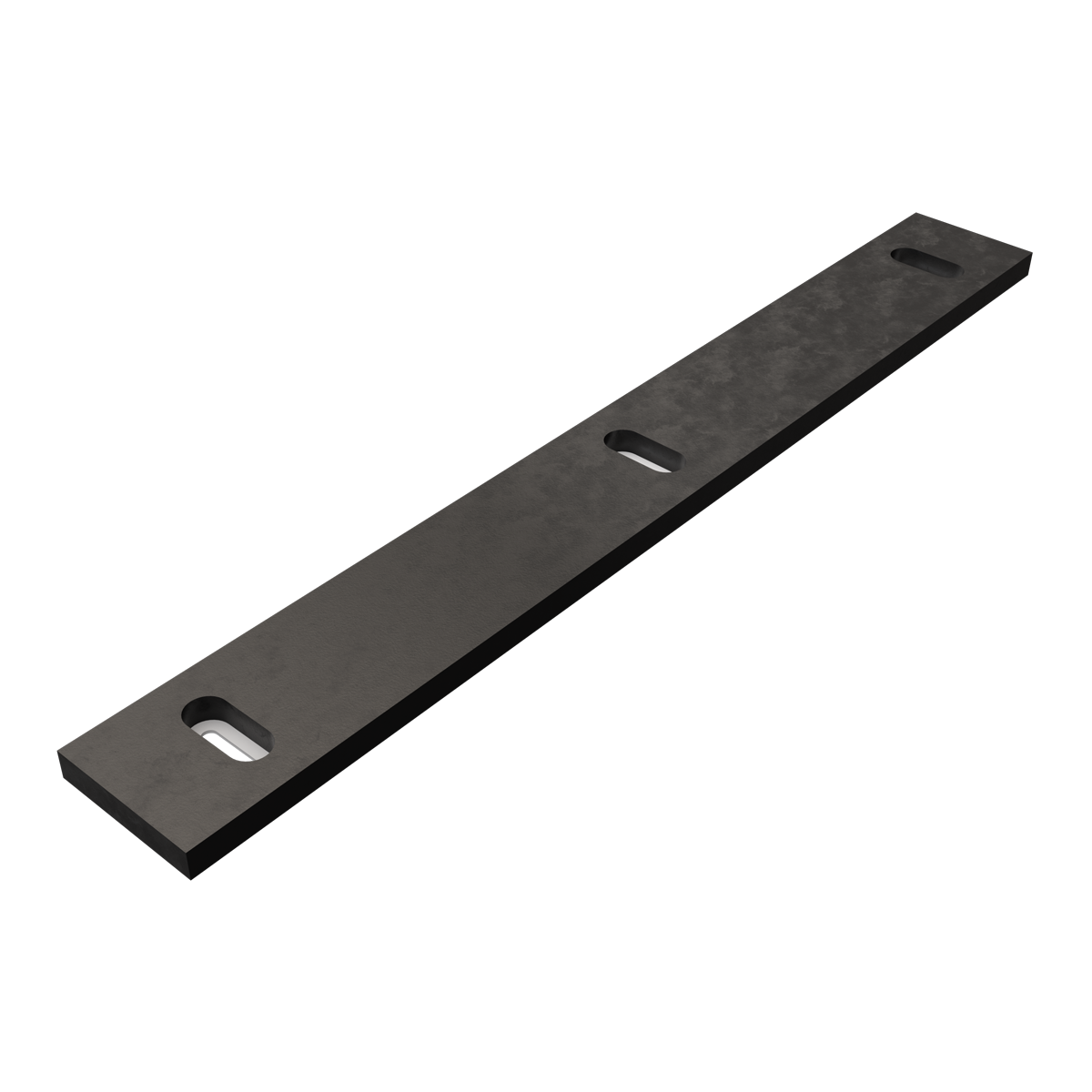

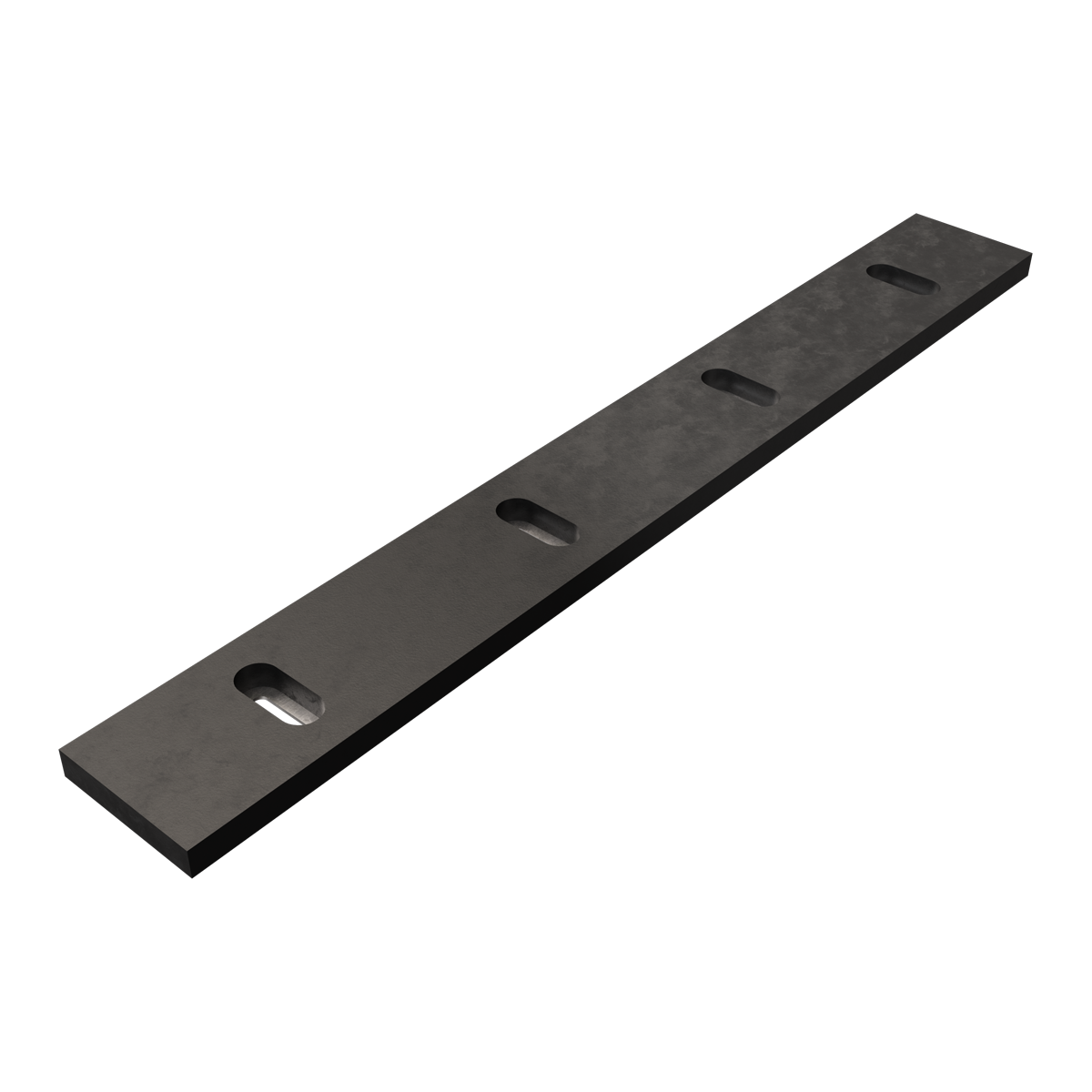

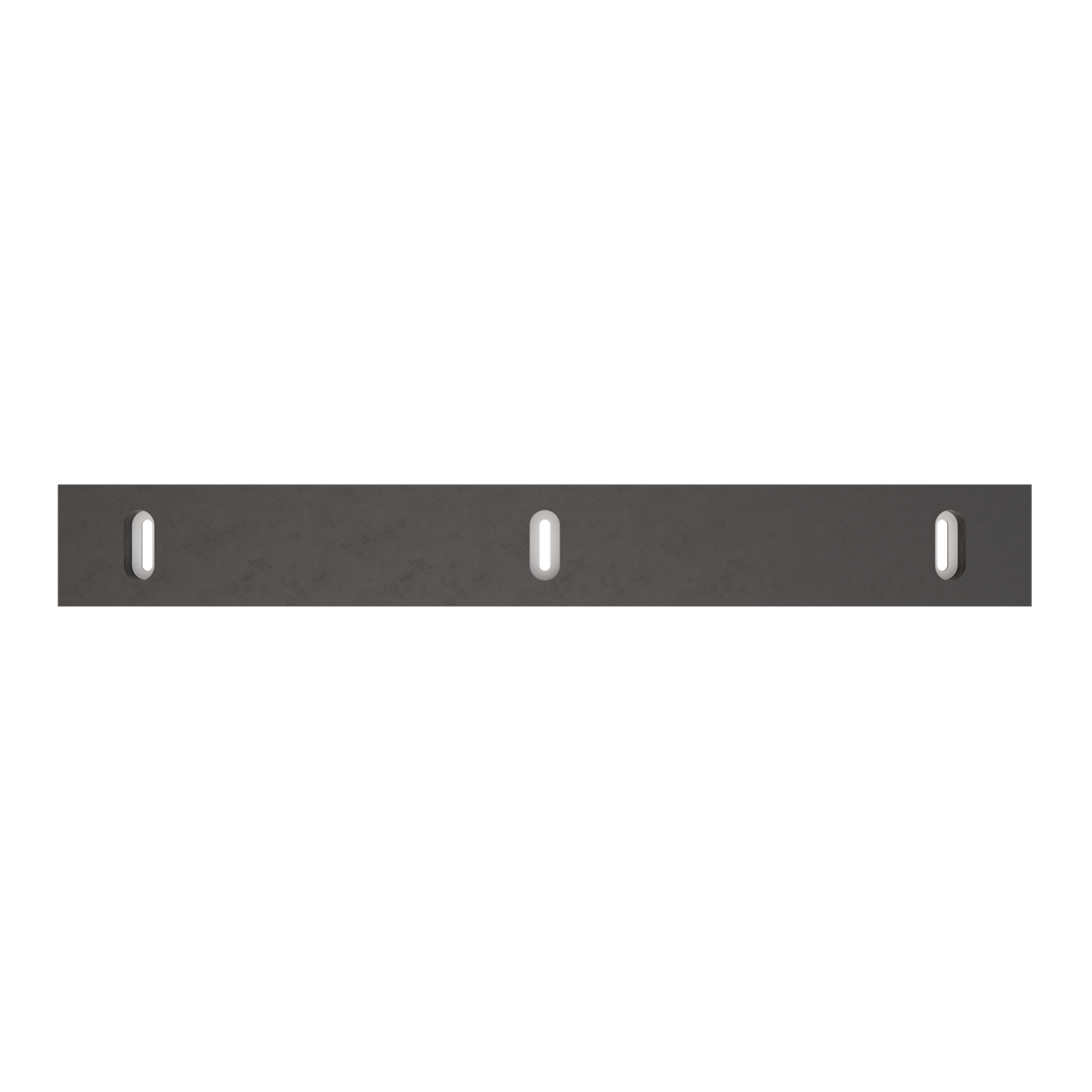

PROTEX RSL

PROTEX RSL rubber side wear plates are best suited for heavy-duty applications, large (>3") material, dry material, and wet/rounded material. RSL is commonly used in scalping and dry applications.
Thicknesses:
1-1/8"
Heights:
6" / 8" / 10" / 12"
Lengths, Bolt Patterns:
48” w/4–20–20–4 spacing
48” w/6–12–12–12–6 spacing
60” length available upon request

*Bolt-on is the most common installation method. Wedge and angle clips available upon request.

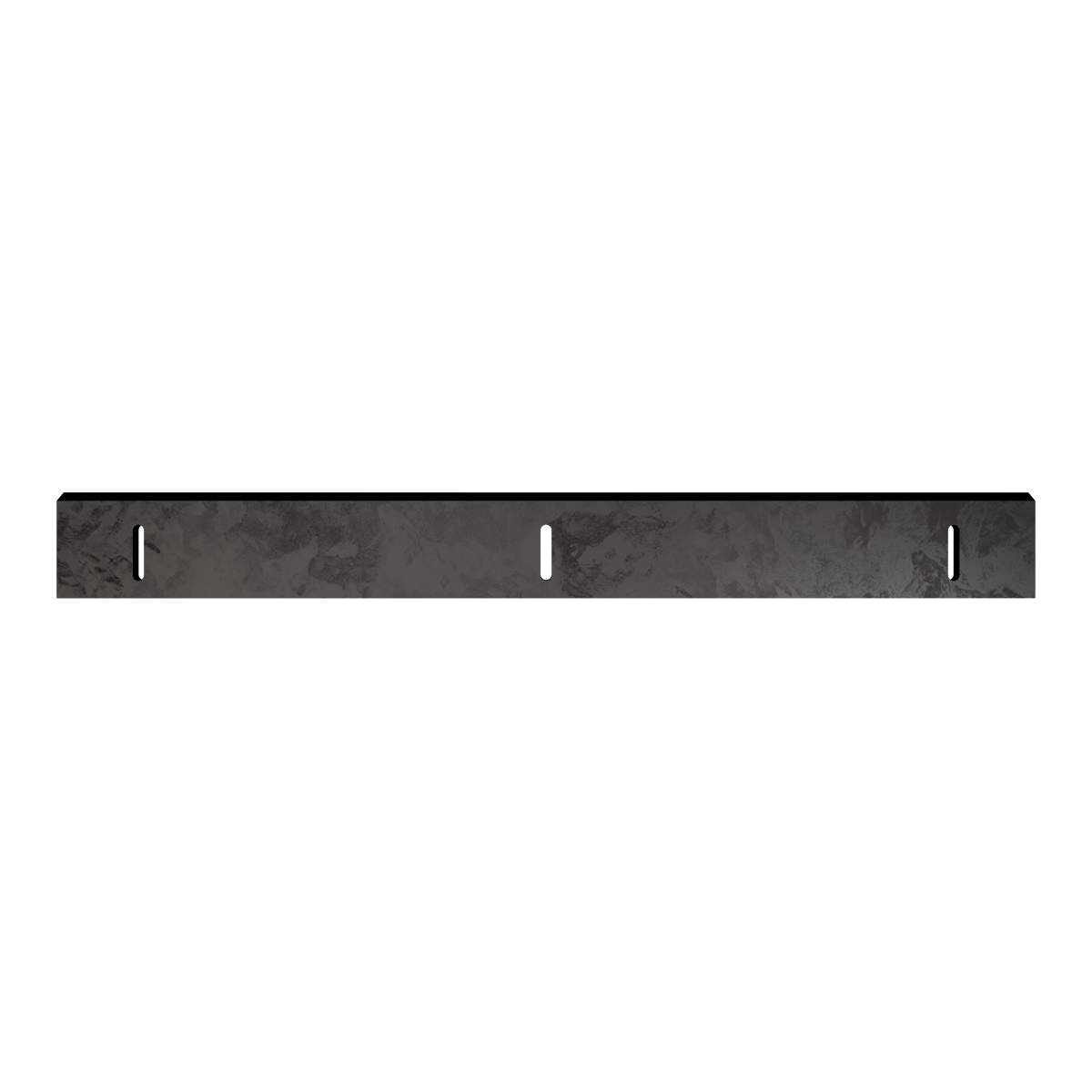

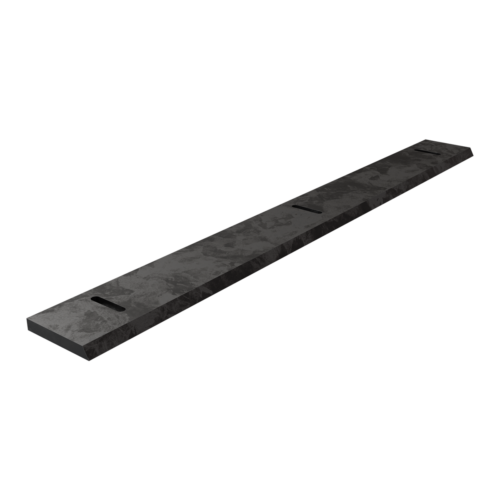

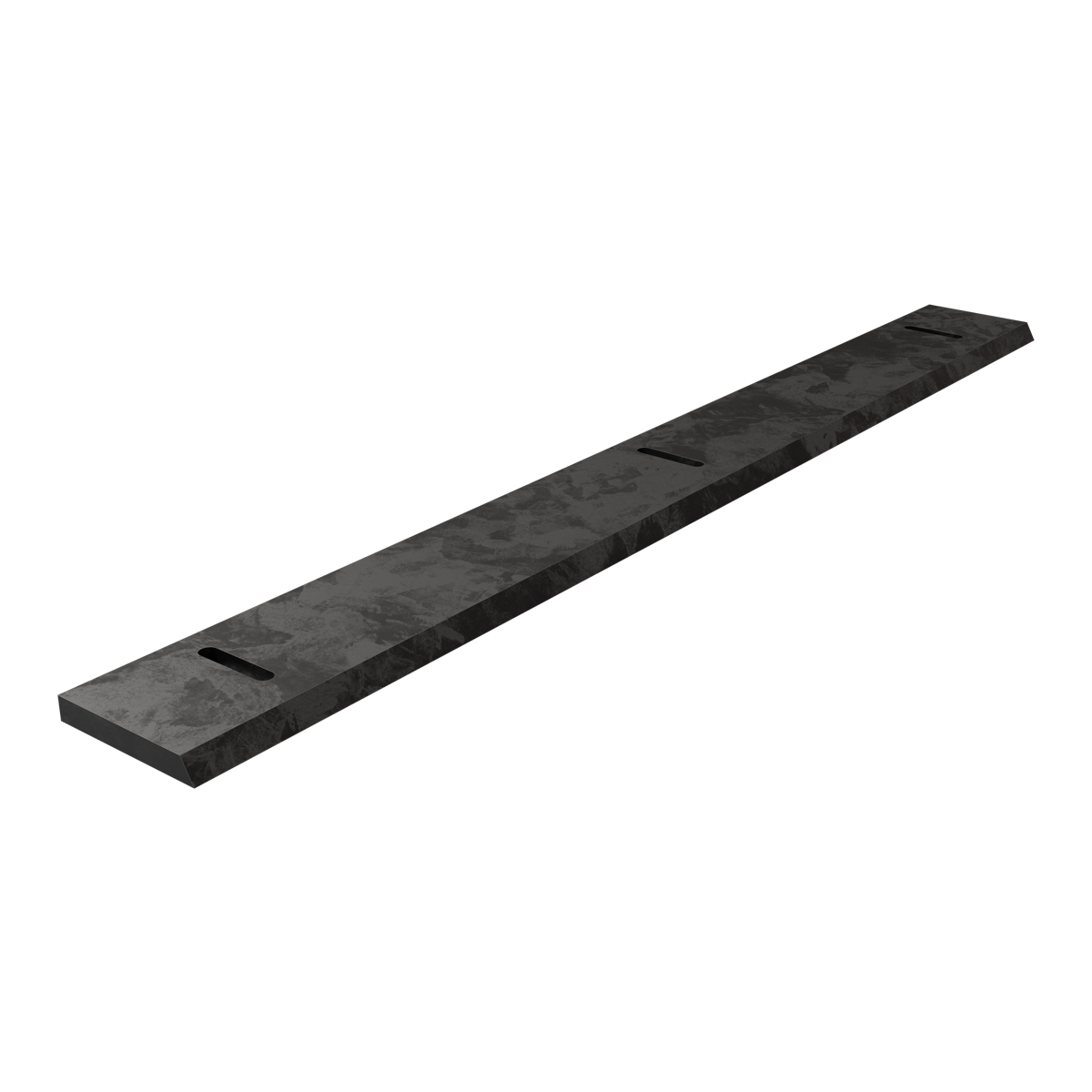

PROTEX PSL

PROTEX PSL polyurethane side wear plates are best suited for moderate to heavy applications and wet applications like wash or rinse screens. PSL is designed with a 30 degree beveled top.
Thicknesses:
3/4" / 1-1/4"
Heights:
5.19" / 8"
Lengths, Bolt Patterns:
48” w/4–20–20–4 spacing
48” w/6–12–12–12–6 spacing
60” length available upon request

* Molded with bolt-holes is the most common installation method. Beveled top allows for wedge and angle clip installation.

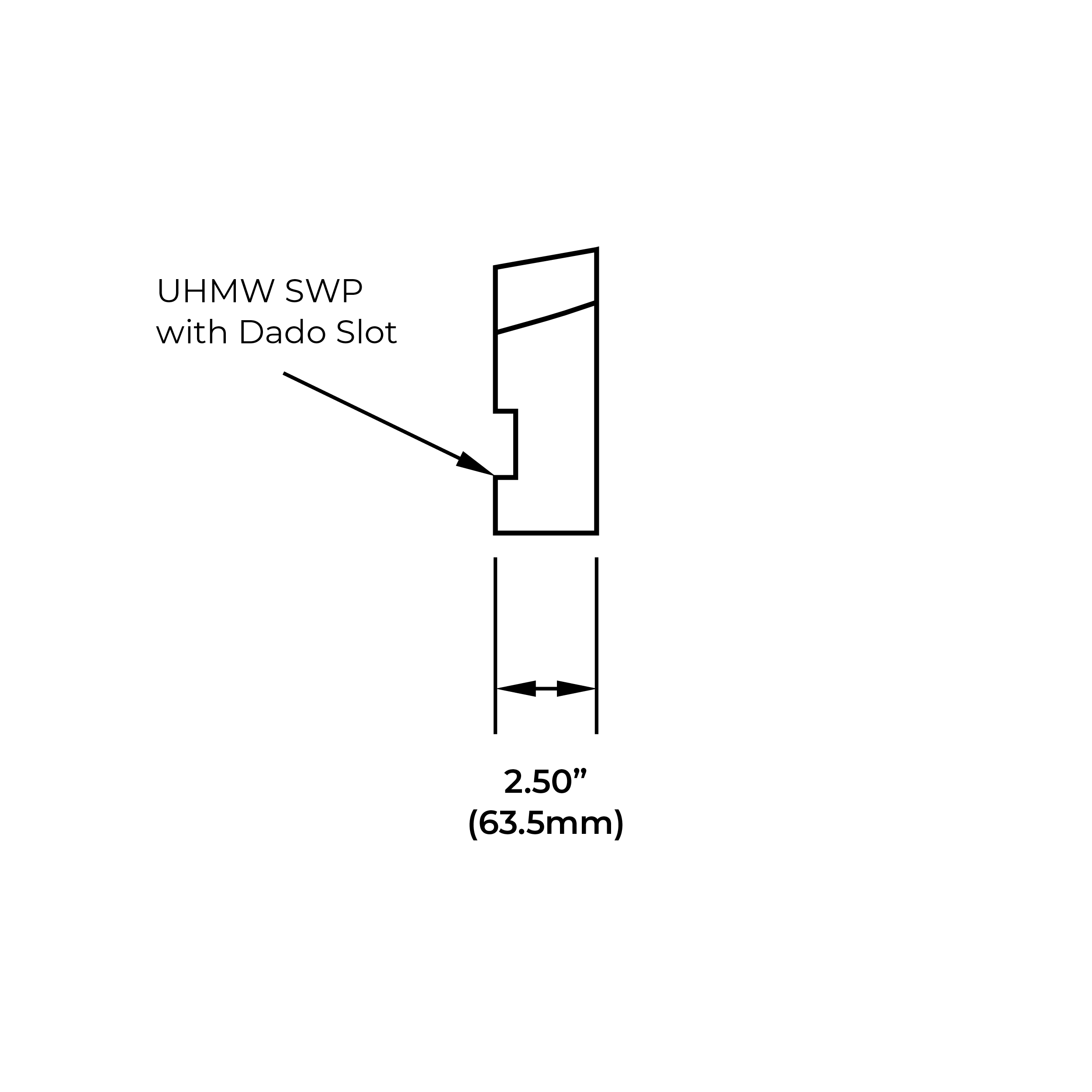

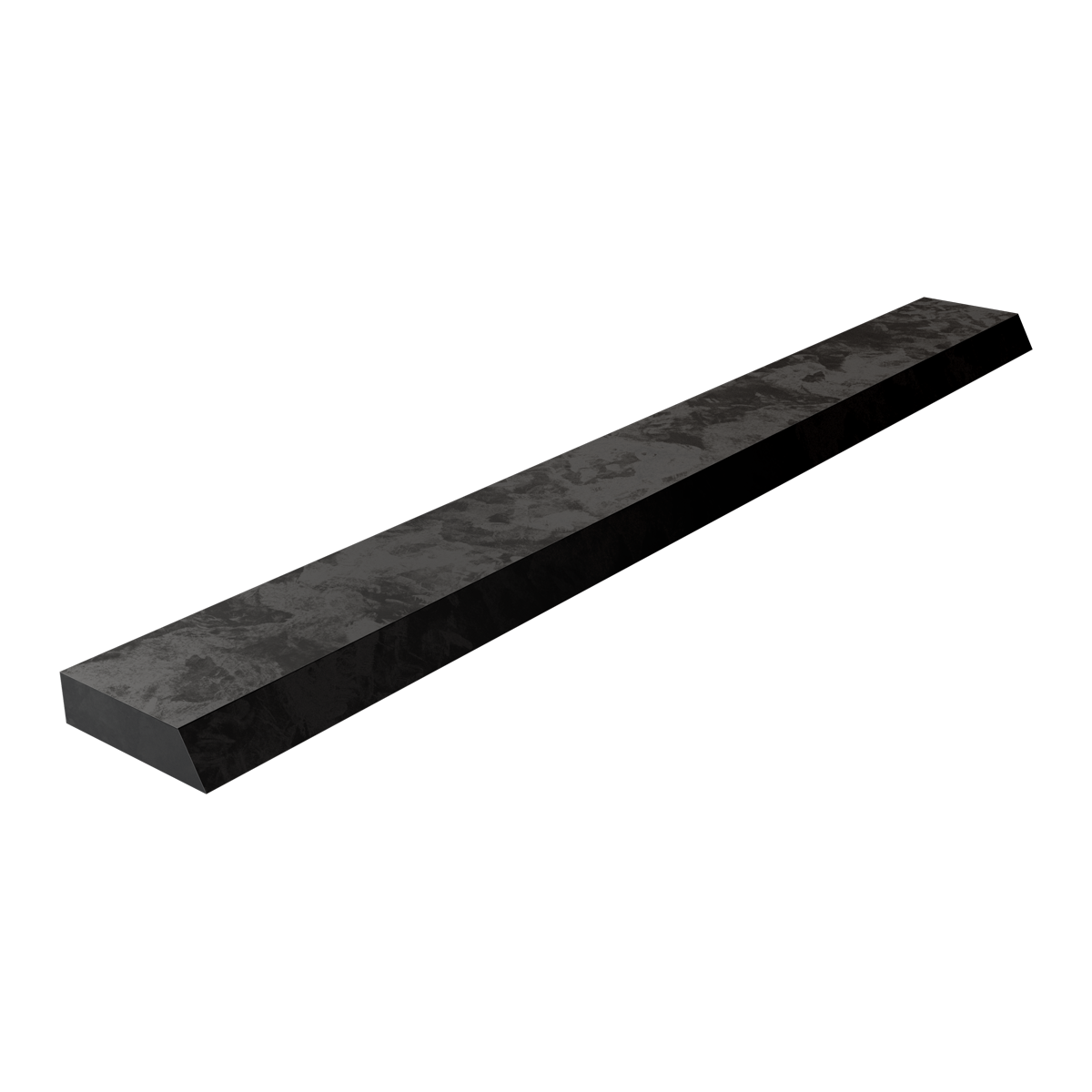

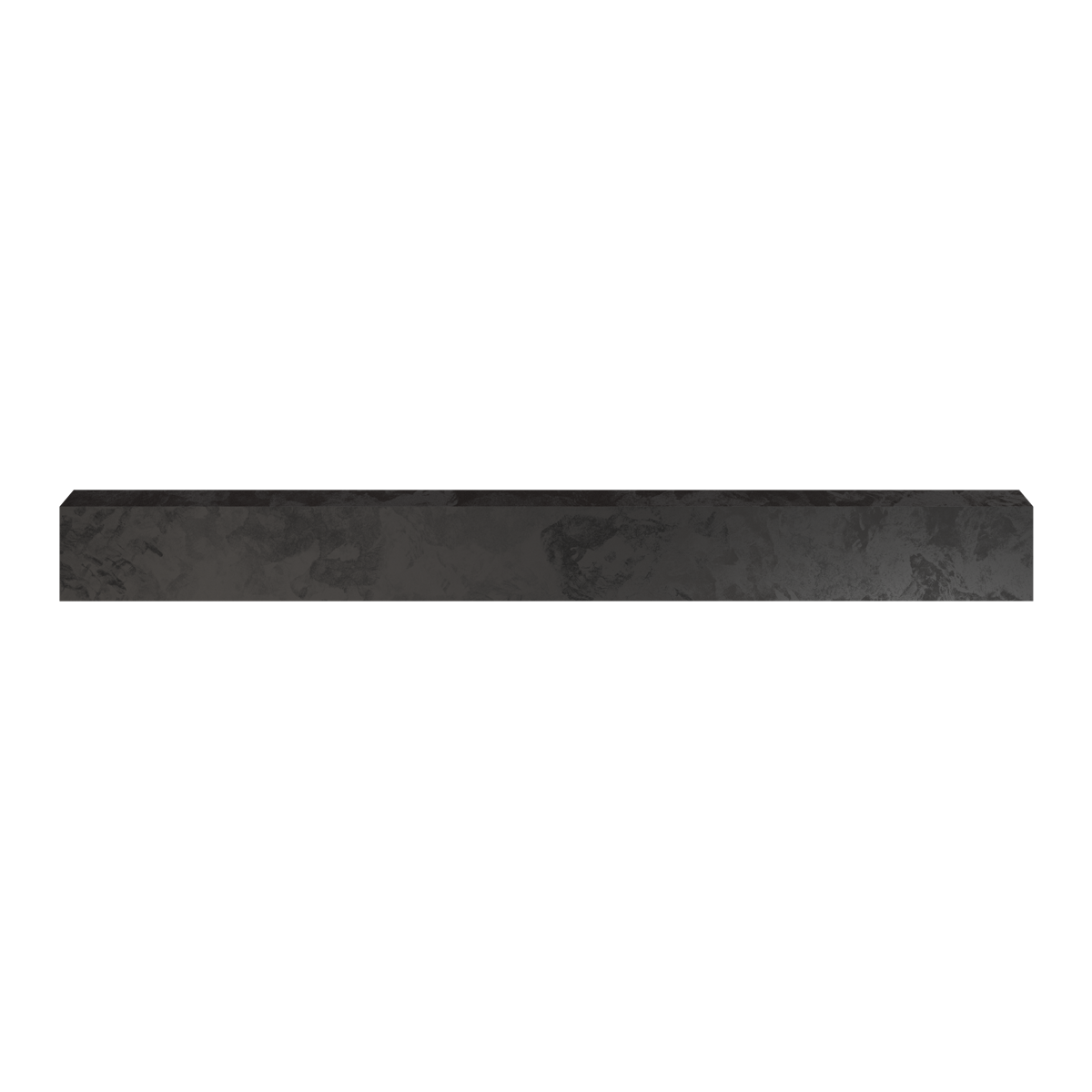

PROTEX USL

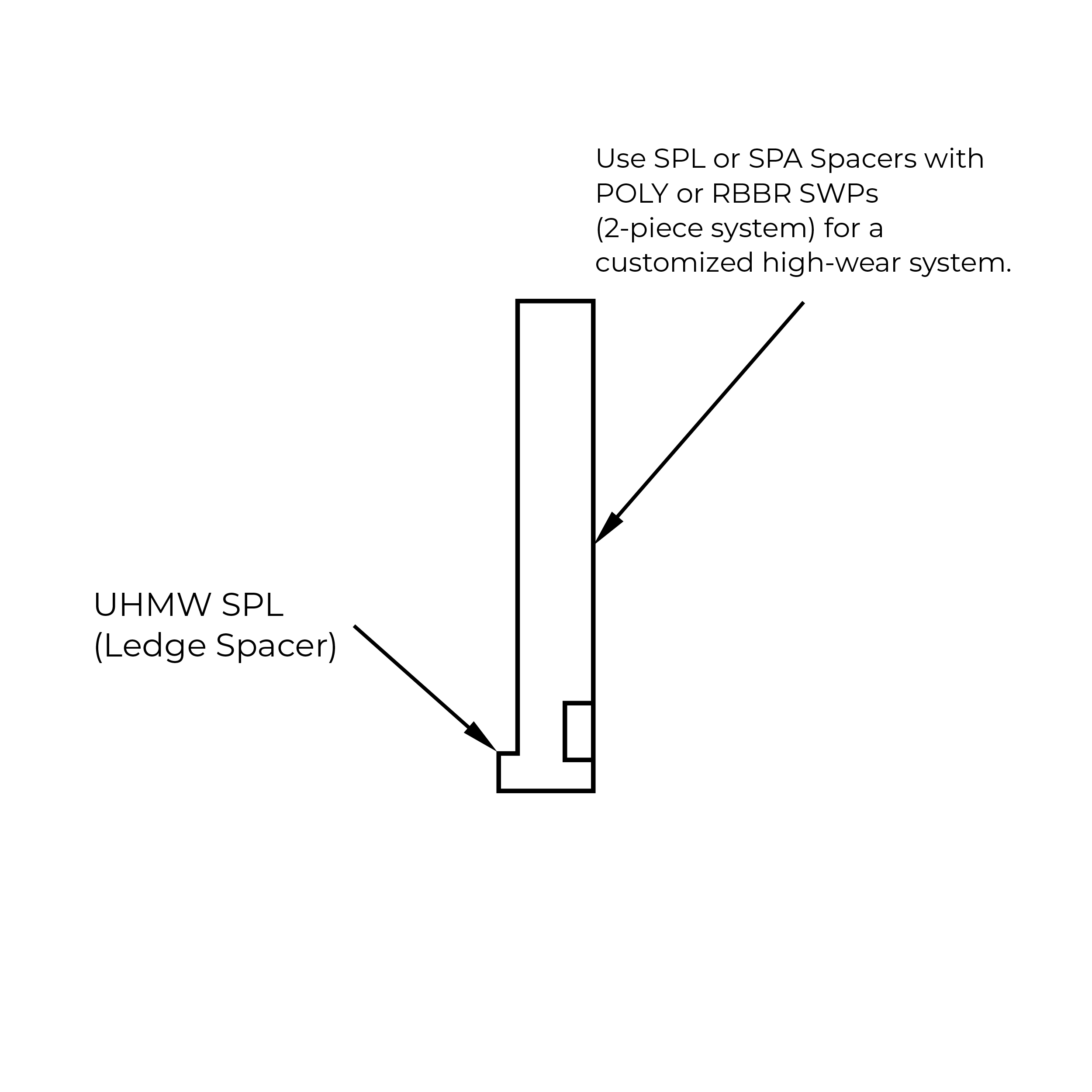

A great lower cost option for moderate protection, PROTEX USL ultra high molecular weight (UHMW) side wear plates are best suited for highly customized side sheets and low to moderate wear applications. If a high wear option is needed on a customized side sheet, a USL spacer can be paired with PROTEX PSL or RSL in a 2-piece system.
Thicknesses:
1" / 1-1/4" / 1-1/2" / 2" / 2-1/2"

Heights:
2" - 4"
Lengths, Bolt Patterns:
4” - 100" w/custom bolt-hole location and spacing

* Can be molded with a flat top or a beveled top for wedge and angle clip installation.
